Root Stock Wine Design
SC PRO 4000 1000 Cubic Feet
SC PRO 4000 1000 Cubic Feet
Cellar Size:
Approx. 1000 cu. ft. when the cellar is fully insulated and sealed with a proper vapor barrier (each wine cellar is unique and has specific cooling requirements; heat load calculations should always be performed prior to selecting a cooling unit)
BTU/h w/85°F air entering condenser coil:
2253
Dimensions:
17.5″L x 14.25″W x 15.75″H
Refrigerant:
R-134a
HP:
1/6+
Voltage Rating:
115V (20-amp dedicated circuit required); 230V (subject to availability)
Weight:
65 lbs
Amps:
4.7 (running amps)
Drain Line:
1/2″ ID clear plastic tubing

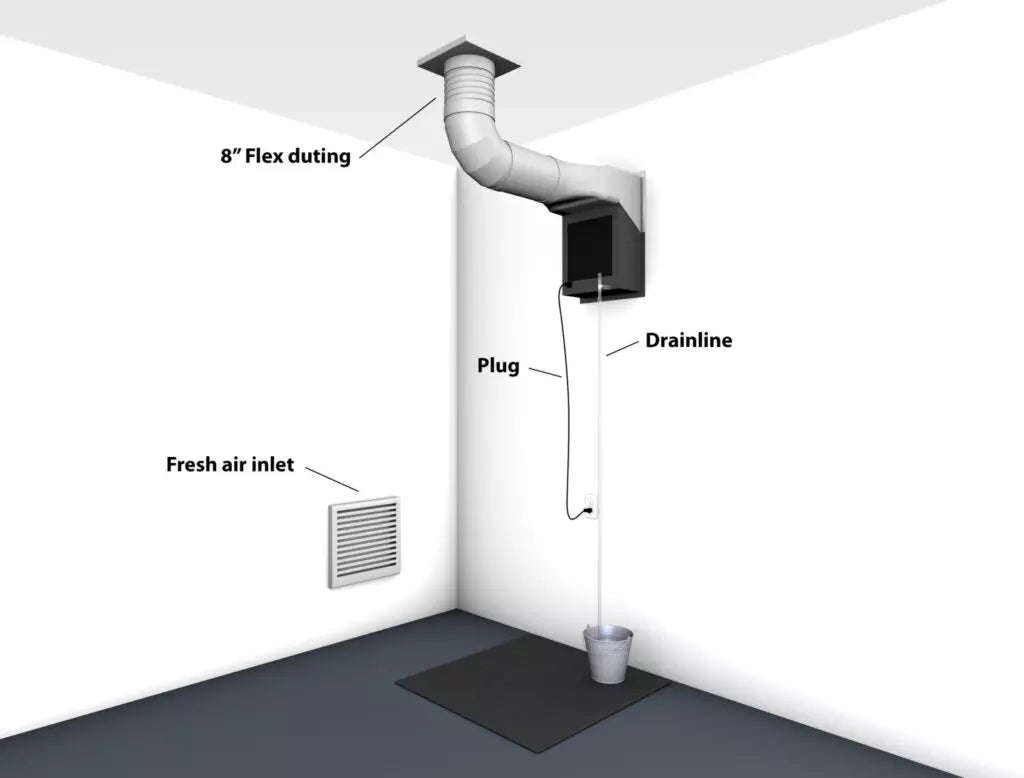

Installation:
Through-the-wall, partially ducted
Thermostat:

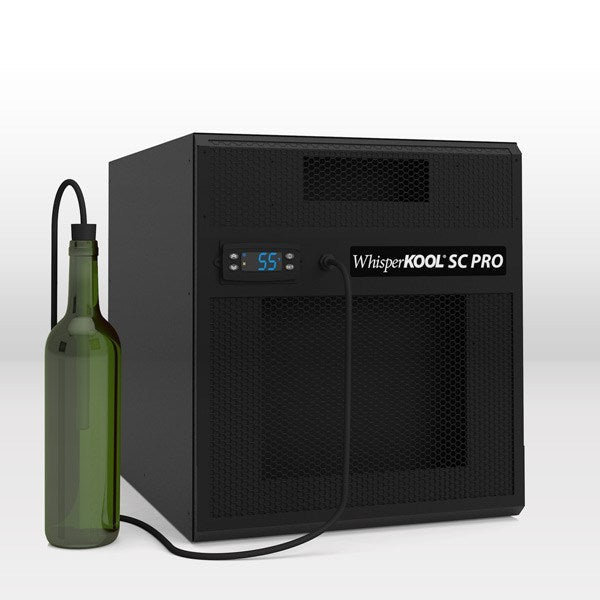

Advanced digital controller, liquid-temperature-measuring bottle probe (retractable cable)
Temp. Delta:
Can maintain a 55°F cellar temperature with up to 85°F condenser air intake temperature
Ducting Options:

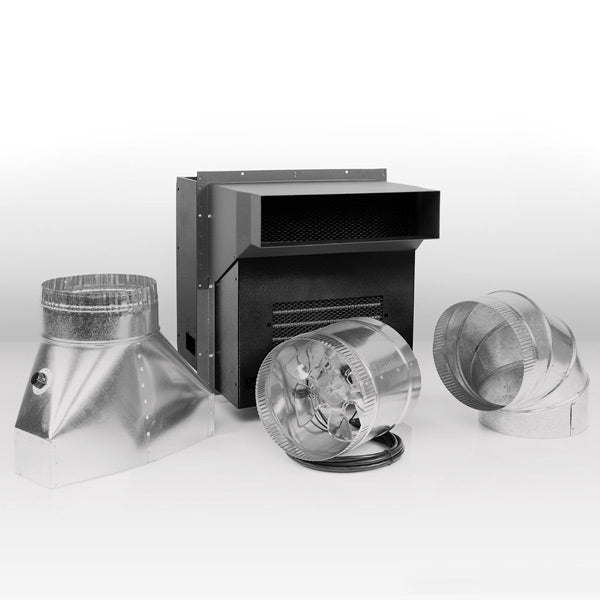

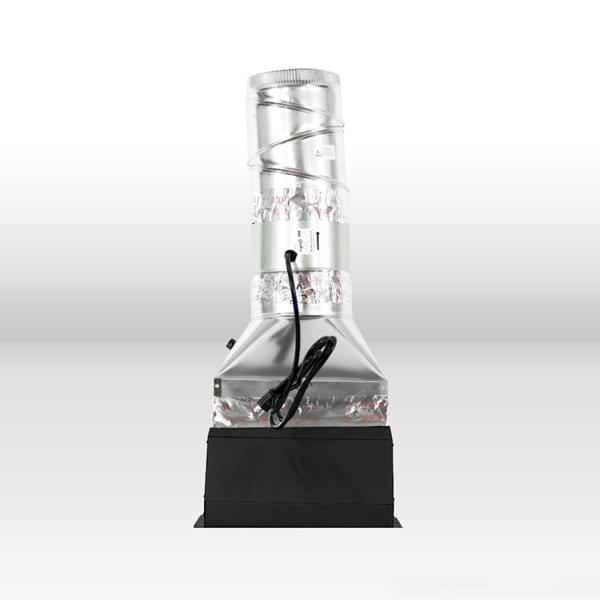

Exhaust air can be ducted using the optional ducting kit
Warranty:
Two-year limited warranty (parts and labor) / Five-year limited warranty (compressor)
