Platinum Split Twin – Ducted 3000 Cubic Feet

220V
Model 9000
Cellar Size 3000 cu. ft.*
BTU/h (85°F condenser air intake temperature) Low: 7536 • Medium: 7850 • High: 8164
CFM 200 (per Unit)
Dimensions Evaporator: 16.1”L x 20.5”W x 15.5”H (x2) • Condenser: 24”L x 18.98”W x 16.16”H
Refrigerant R-134a
Voltage Rating Evaporator: 115V (15 amp dedicated circuit required) • Condenser: 230V (15 amp dedicated circuit required)
Weight (lbs) Evaporator: 57 (x2) • Condenser: 75
Amps Evaporator: 1 (running amps) • Condenser: LRA 50/RLA 9.3
Line Set Liquid Line 3/8” • Suction Line (Less than 50ft. 3/4”) (Greater than 50ft. 7/8”)
Duct Size 8” Supply (x2) • 10”Return (x2)
Drain Line ½” ID clear plastic tubing (not provided)
Installation Evaporator can be installed up to 25 duct feet away from the cellar. Condensing unit can be installed up to 100 line feet from the evaporator unit.
Thermostat Advanced digital display (50ft. cable), liquid-temperature-measuring bottle probe (50ft. cable)
Temp. Delta Can maintain a 55°F cellar temperature with up to 110°F condenser air intake temperature
Warranty Two-year limited warranty (parts and labor)

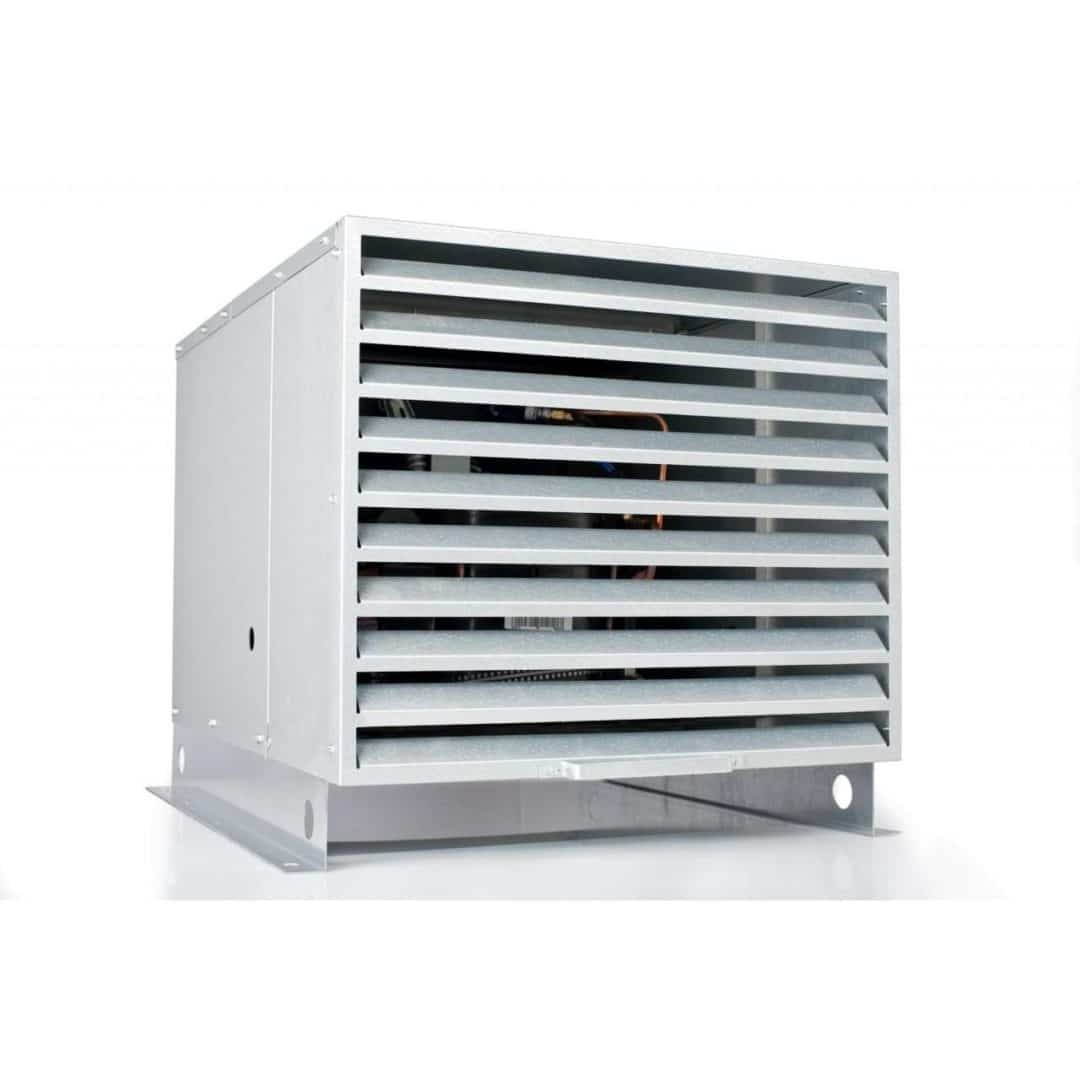

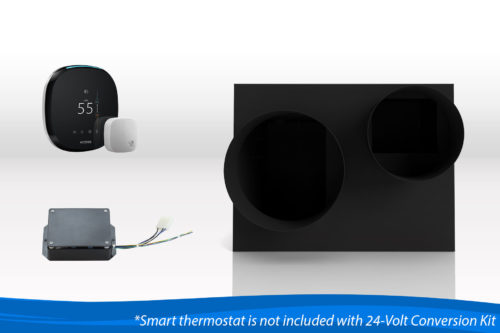

Options: Exterior condenser housing, 24V thermostat conversion kit, condenser coil coating

220V HE

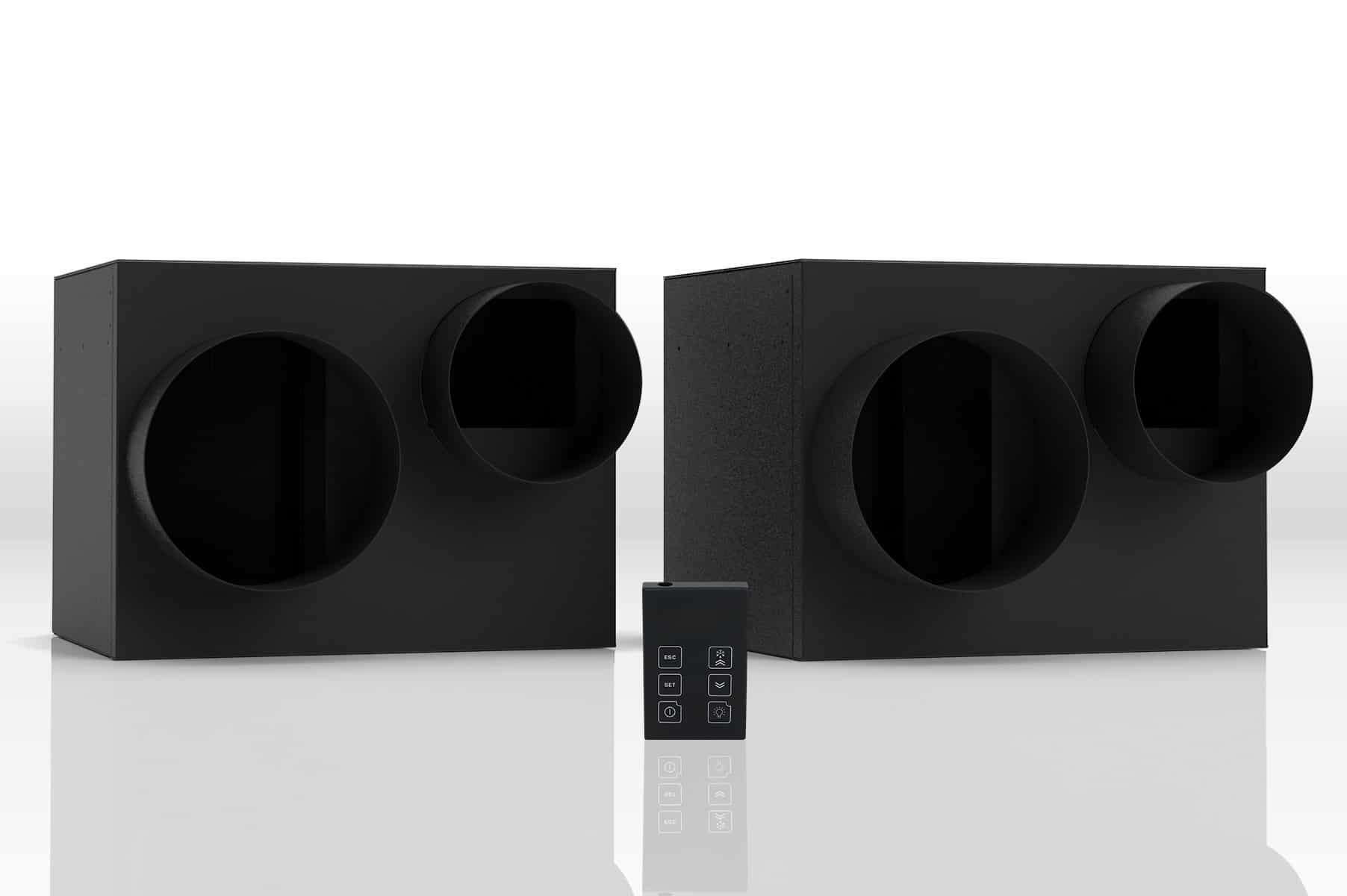

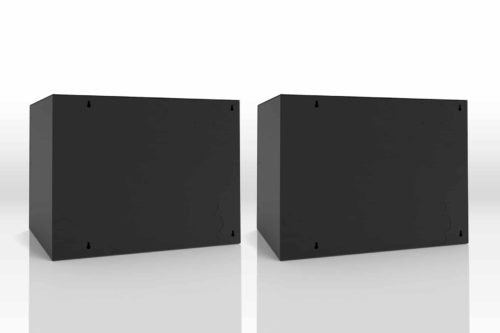

EVAPORATOR
Model 9000
Fan Speed Low | Medium | High
BTU/h (60°F condenser air intake temperature) 7256 / 8208 | 8201 / 8810 | 8883 / 9417 Sensible / Total
BTU/h (75°F condenser air intake temperature) 7131 / 8061 | 7626 / 8326 | 8322 / 8636  Sensible / Total
BTU/h (85°F condenser air intake temperature) 6843 / 7845 | 7368 / 7959 | 7779 / 8054 Sensible / Total
dBA 52 | 56 | 62
Dimensions 16.1”L x 20.5”W x 15.5”H
Refrigerant R-134a
Voltage Rating 120V (15-amp dedicated circuit required)
Weight (lbs) 54
Amps Primary 2.48 (Running Amps) ; Secondary (2.2 Running Amps)
Drain Line 1/2″ ID clear plastic tubing (not provided)
Installation Evaporator unit is installed in the cellar.
Thermostat Advanced digital display (50-ft. cable), liquid-temperature-measuring bottle probe (retractable cable), 24V – customer supplied
Temp. Delta Can maintain a 55°F cellar temperature with up to 120°F condenser air intake temperature
Warranty Two-year limited warranty (parts and labor)

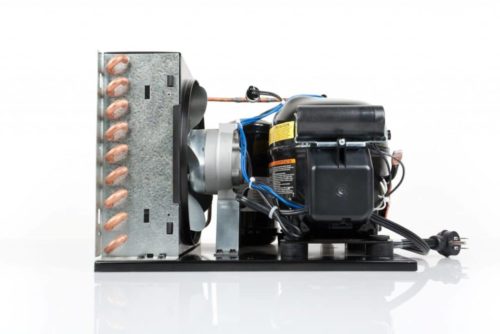

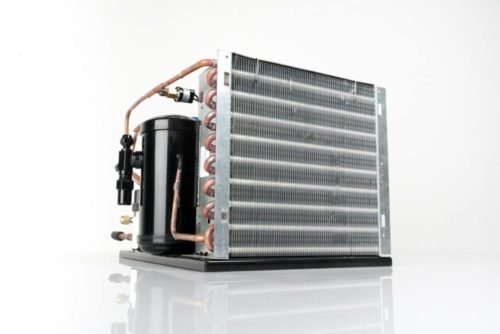

Condenser
dBA 48
Dimensions 31.18″L x 10.75″W x 21.8″H
Condensing Unit HP 1.0 HP
Voltage Rating 220V (15-amp dedicated circuit required)
Weight (lbs) 64
Amps LRA 20, RLA 4.25, FLA 4.89
Line Set Liquid Line 3/8” OD • Suction Line (Less than 50ft. 5/8” OD) (Greater than 50ft. 3/4” OD)
Installation Condensing Unit can be installed up to 100 line feet from the evaporator unit
Temp. Delta Can maintain a 55°F cellar temperature with up to 120°F condenser air intake temperature
Warranty Two-year limited warranty (parts and labor)
