Root Stock Wine Design
Fully Ducted Phantom 5000 1250 Cubic Feet
Fully Ducted Phantom 5000 1250 Cubic Feet
Cellar Size:
1250 cu. ft.* (Each wine cellar is unique and has specific cooling requirements. Heat load calculations should always be performed prior to selecting a cooling unit. See our Cellar Wizard.)
BTUh w/85°F:
5521
CFM:
326 with blowers in top orientation;
312 with blowers in side orientation
Dimensions:
15.75”H x 15.75”W x 37”L (without duct plenums);
22.75” H x 15.75” W x 48”L (duct plenums on top of unit);
15.75” H x 22.75” W x 48”L (duct plenums on side of unit)
Refrigerant:
R-134a
HP:
1/3
Voltage Rating:
115V (20-amp dedicated circuit required)
Weight:
115 lbs.
AMPS:
7.6 (running)

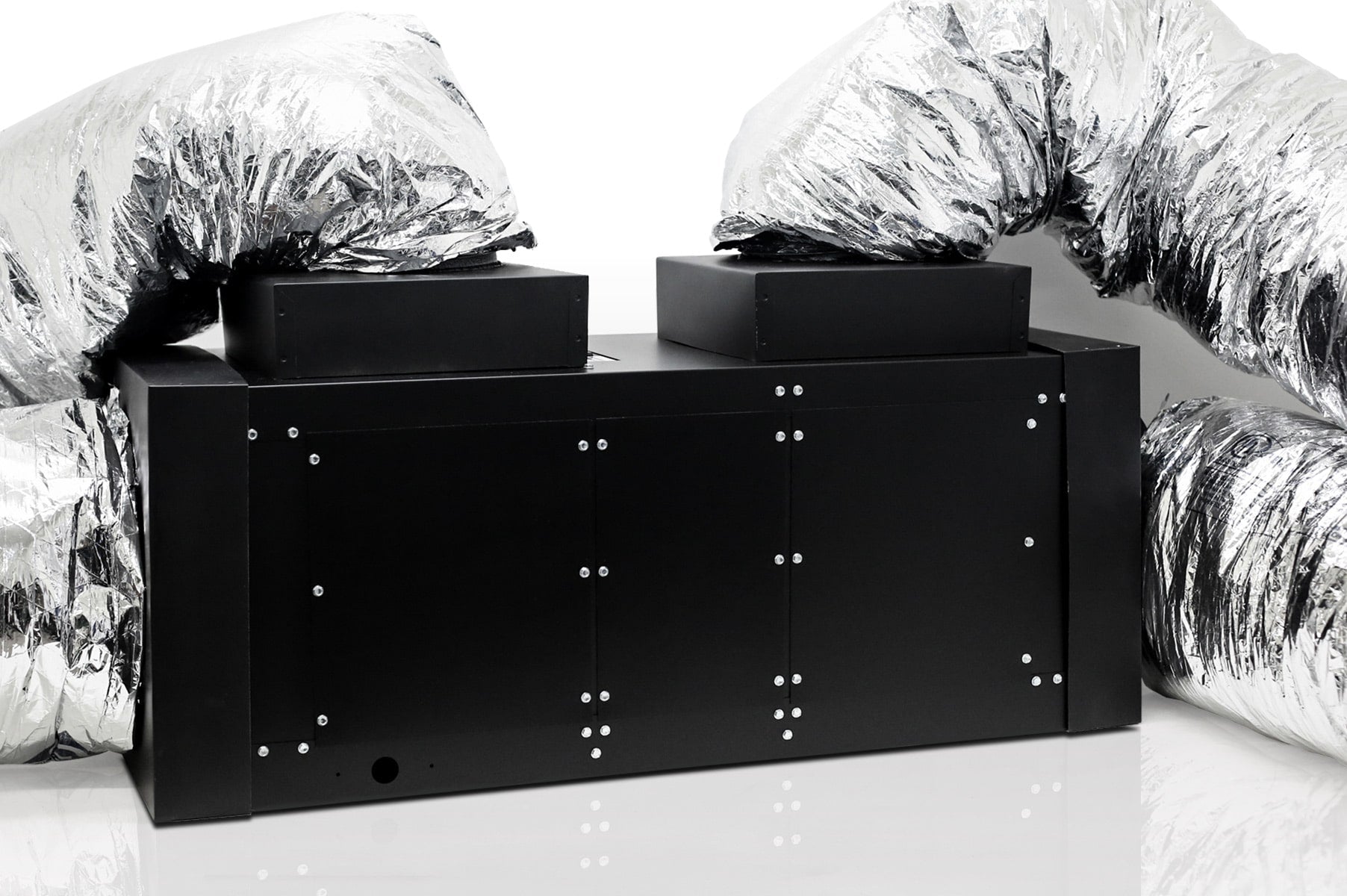

Duct Size:
10” Return • 8” Supply (evaporator & condenser)
Drain Line:
1/2″ ID clear plastic tubing
Installation:
Unit is installed in an attic or utility room. Max. duct length is 50 combined feet for evap and condenser sides (25-ft. supply and 25-ft. return) with a maximum of three bends per side.
Temp. Delta:
55°F temperature differential between cellar environment and condensing unit intake air.
Thermostat:

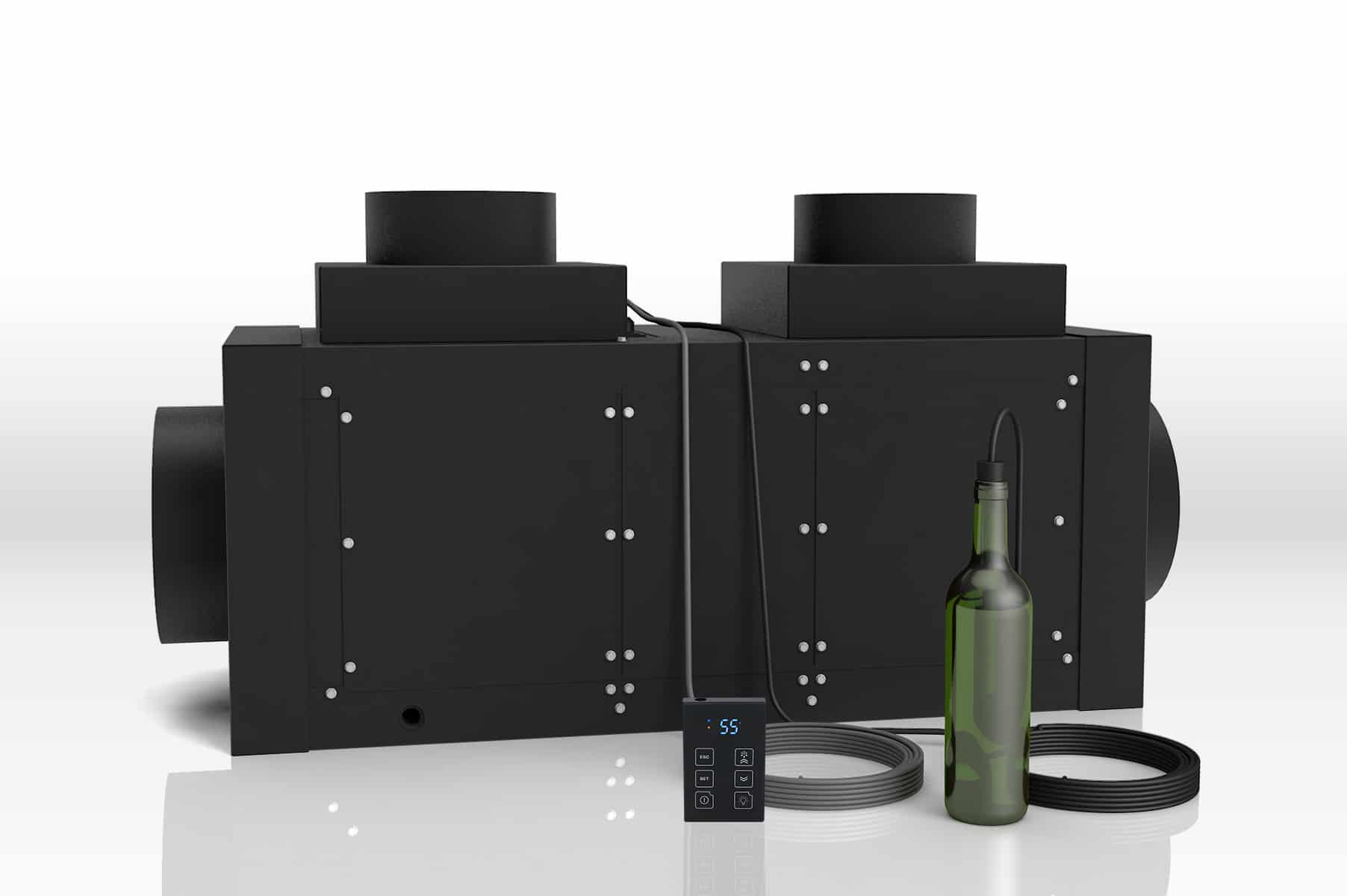

Remote digital display with 50-ft. cable and 50-ft. liquid-temperature-measuring bottle probe
Warranty:
Two-year limited warranty (parts and labor)
