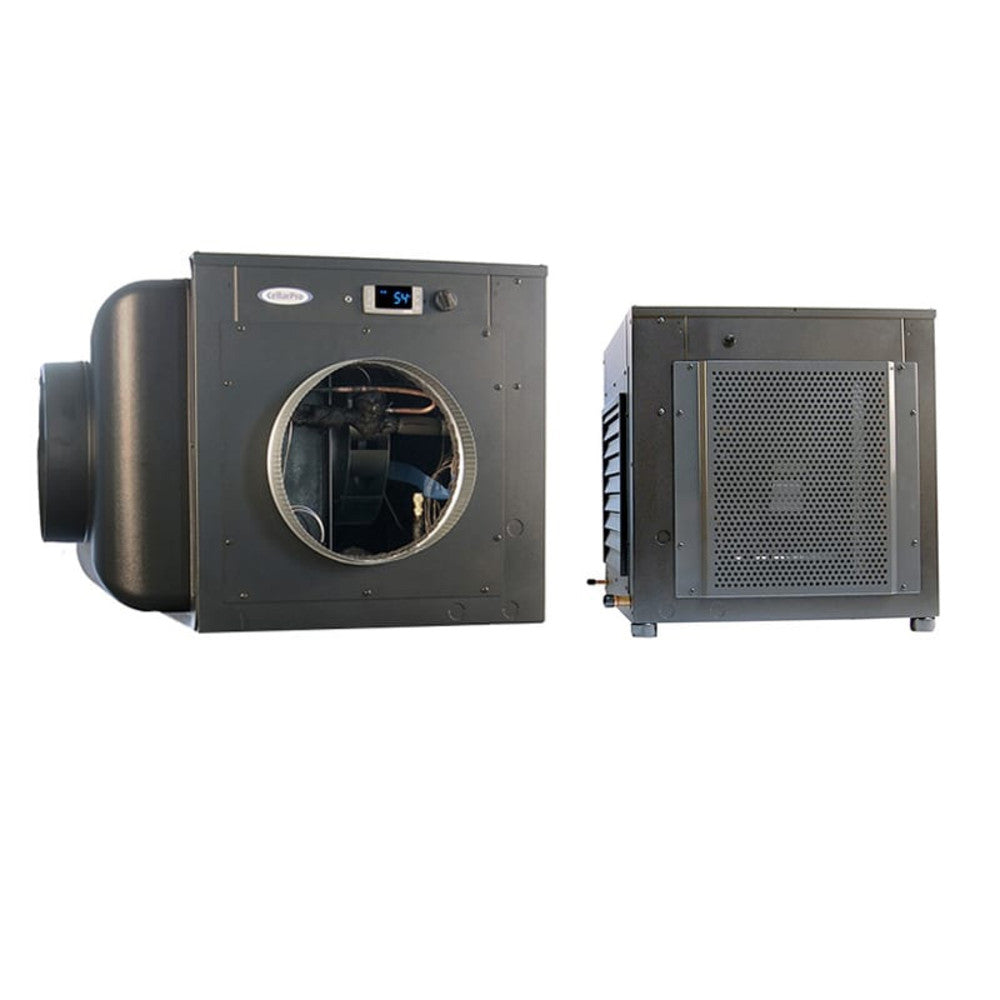

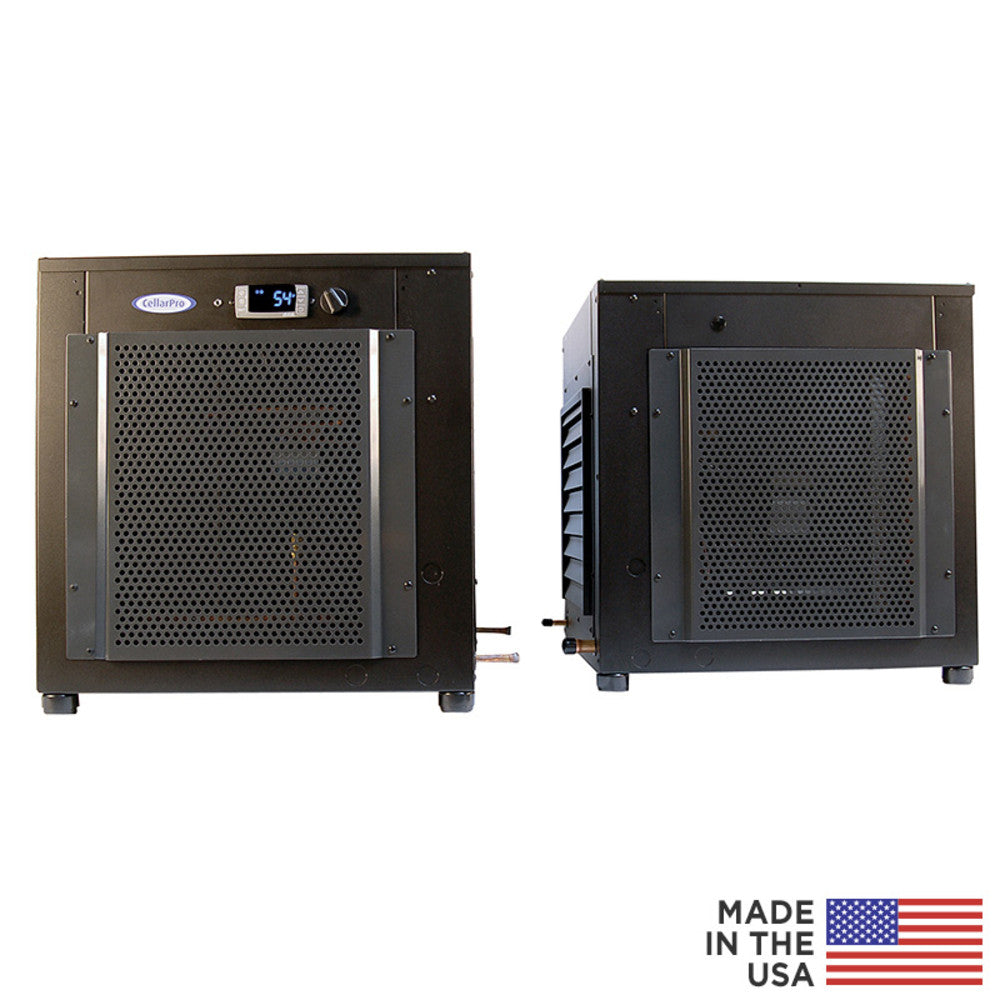

CellarPro Air Handler Split AH8500Sx-ECX Outdoor #7110

CellarPro Air Handler Split AH8500Sx-ECX Outdoor #7110

Brand: CellarPro

Size: 18 3/5w x 18 3/5d x 19 3/10h (in) (Evap) 10-Inch Ducting

Weight: 180 lbs

Condensing Unit Dimensions:
- 120 lbs (no humidifier)
- 18.6w x 18.6d x 19.3h


Evaporator Unit Dimensions:
- 60 lbs
- 18.6w x 18.6d x 19.3h

Condensing Unit Dimensions:
- 120 lbs (no humidifier)
- 18.6w x 18.6d x 19.3h
Evaporator Unit Dimensions:
- 60 lbs
- 18.6w x 18.6d x 19.3h

Power:
- CellarPro Air Handler Split systems offer a choice of 110V / 60Hz wiring and power configurations:
  1. Two permanent power connections for the evaporator (2.0 amps / 15 amp circuit breaker) and the condensing unit (15.7 amps / 25 amp circuit breaker). This wiring is recommended for Valve Control configurations.
  2. One permanent power connection for the entire system (25 amp circuit breaker). In this configuration, the condensing unit must be wired to the evaporator, and must be used with Electronic Control.
- Startup Amps: 54.5 Amps
- Running Amps Cord-Connected: 14.6 Amps
- Total Watts: 1078 (medium fan speed)
- 1 Ton Nominal

BTUH @ 55F
- Low Fan Speed: 6245
- Med Fan Speed: 6649
- High Fan Speed: 7156

Decibels
Evaporator Decibels
- Low Fan Speed, Ducted: 38 dbA
- Med Fan Speed, Ducted: 44 dbA
- High Fan Speed, Ducted: 52 dbA

Condensing Unit Decibels
- Low Fan Speed, Ducted / Non-Ducted: 45 dbA / 58 dbA
- Med Fan Speed, Ducted / Non-Ducted: 52 dbA / 65 dbA
- High Fan Speed, Ducted / Non-Ducted: 57 dbA / 70 dbA

Sizing Table: Click here to view sizing table
