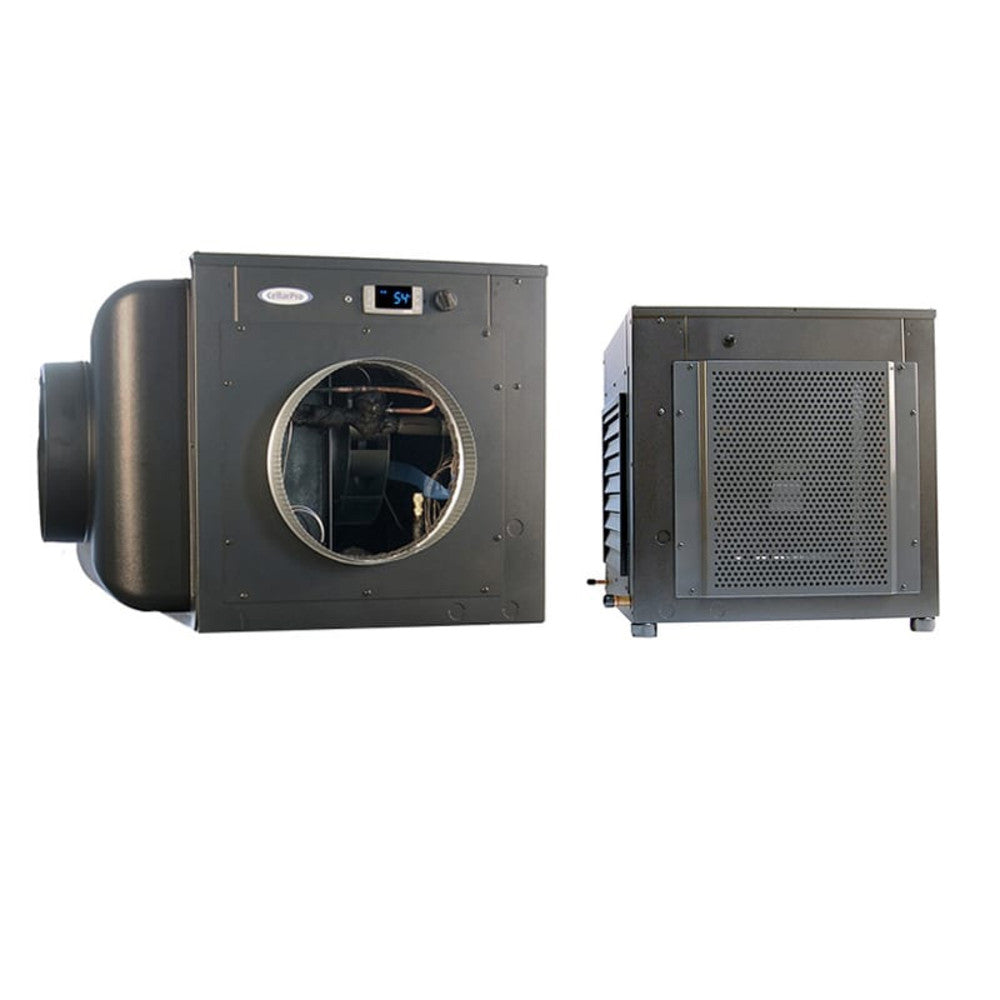

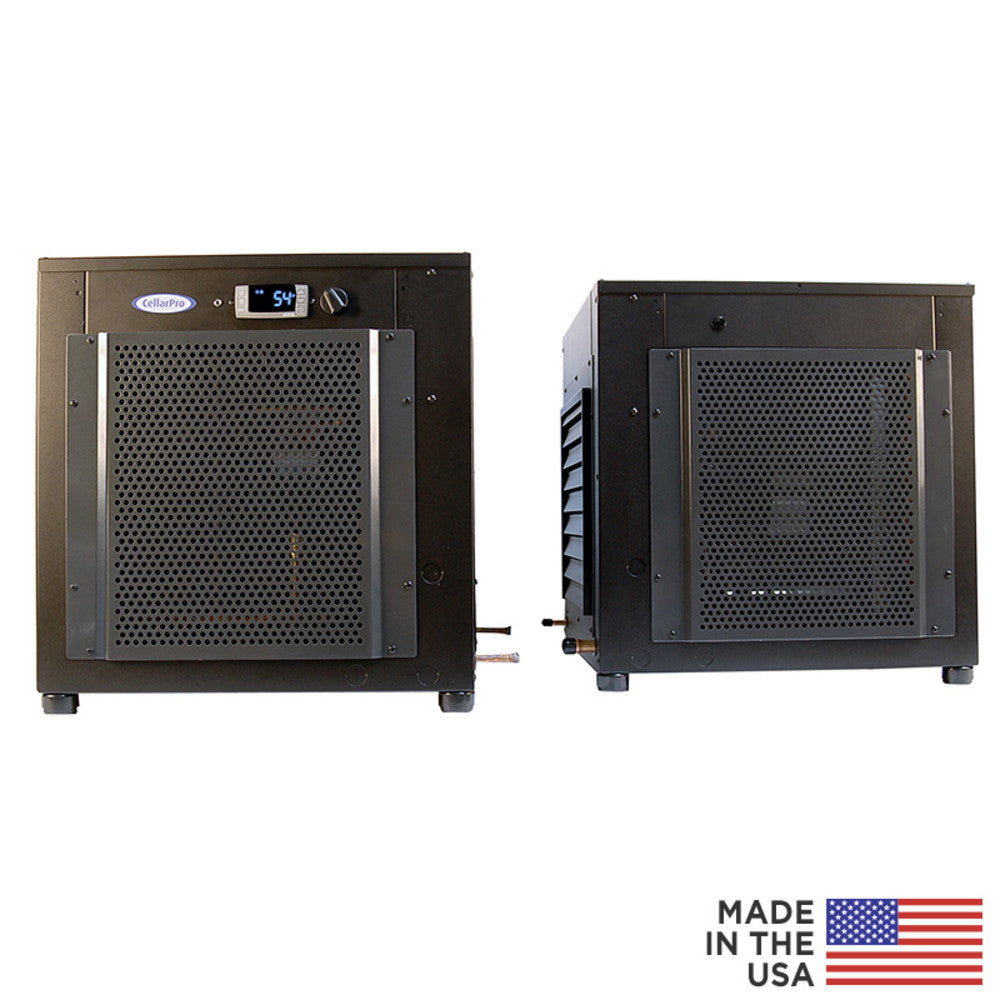

CellarPro Air Handler Split AH8500Sx-ECC Outdoor #36023
CellarPro Air Handler Split AH8500Sx-ECC Outdoor #36023
Brand: CellarPro
Size: 18 3/5w x 18 3/5d x 19 3/10h (in) (Evap) 10-Inch Ducting
Weight: 180 lbs
Condensing Unit Dimensions:
- 120 lbs (no humidifier)
- 18.6w x 18.6d x 19.3h
Evaporator Unit Dimensions:
- 60 lbs
- 18.6w x 18.6d x 19.3h
Condensing Unit Dimensions:
- 120 lbs (no humidifier)
- 18.6w x 18.6d x 19.3h
Evaporator Unit Dimensions:
- 60 lbs
- 18.6w x 18.6d x 19.3h
Power:
- CellarPro Air Handler Split systems offer a choice of 110V / 60Hz wiring and power configurations:
- Running Amps Cord-Connected: 15.7 Amps
- Total Watts: 1268 (medium fan speed)
- 1 Ton Nominal
BTUH @ 55F
- Low Fan Speed: 6245
- Med Fan Speed: 6649
- High Fan Speed: 7156
Decibels
Evaporator Decibels
- Low Fan Speed, Ducted: 47 dBA
- Med Fan Speed, Ducted: 51 dBA
- High Fan Speed, Ducted: 59 dBA
Condensing Unit Decibels
- Low Fan Speed, Ducted / Non-Ducted: 45 dBA / 58 dBA
- Med Fan Speed, Ducted / Non-Ducted: 52 dBA / 65 dBA
- High Fan Speed, Ducted / Non-Ducted: 57 dBA / 70 dBA
Sizing Table: Click here to view sizing table
Size: 18 3/5w x 18 3/5d x 19 3/10h (in) (Evap) 10-Inch Ducting
Weight: 180 lbs
Condensing Unit Dimensions:
- 120 lbs (no humidifier)
- 18.6w x 18.6d x 19.3h
Evaporator Unit Dimensions:
- 60 lbs
- 18.6w x 18.6d x 19.3h
Condensing Unit Dimensions:
- 120 lbs (no humidifier)
- 18.6w x 18.6d x 19.3h
Evaporator Unit Dimensions:
- 60 lbs
- 18.6w x 18.6d x 19.3h
Power:
- CellarPro Air Handler Split systems offer a choice of 110V / 60Hz wiring and power configurations:
- Two permanent power connections for the evaporator (3.5 amps / 15 amp circuit breaker) and the condensing unit (15.7 amps / 25 amp circuit breaker). This wiring is recommended for Valve Control configurations.
- One permanent power connection for the entire system (25 amp circuit breaker). In this configuration, the condensing unit must be wired to the evaporator, and must be used with Electronic Control.
- Running Amps Cord-Connected: 15.7 Amps
- Total Watts: 1268 (medium fan speed)
- 1 Ton Nominal
BTUH @ 55F
- Low Fan Speed: 6245
- Med Fan Speed: 6649
- High Fan Speed: 7156
Decibels
Evaporator Decibels
- Low Fan Speed, Ducted: 47 dBA
- Med Fan Speed, Ducted: 51 dBA
- High Fan Speed, Ducted: 59 dBA
Condensing Unit Decibels
- Low Fan Speed, Ducted / Non-Ducted: 45 dBA / 58 dBA
- Med Fan Speed, Ducted / Non-Ducted: 52 dBA / 65 dBA
- High Fan Speed, Ducted / Non-Ducted: 57 dBA / 70 dBA
Sizing Table: Click here to view sizing table
