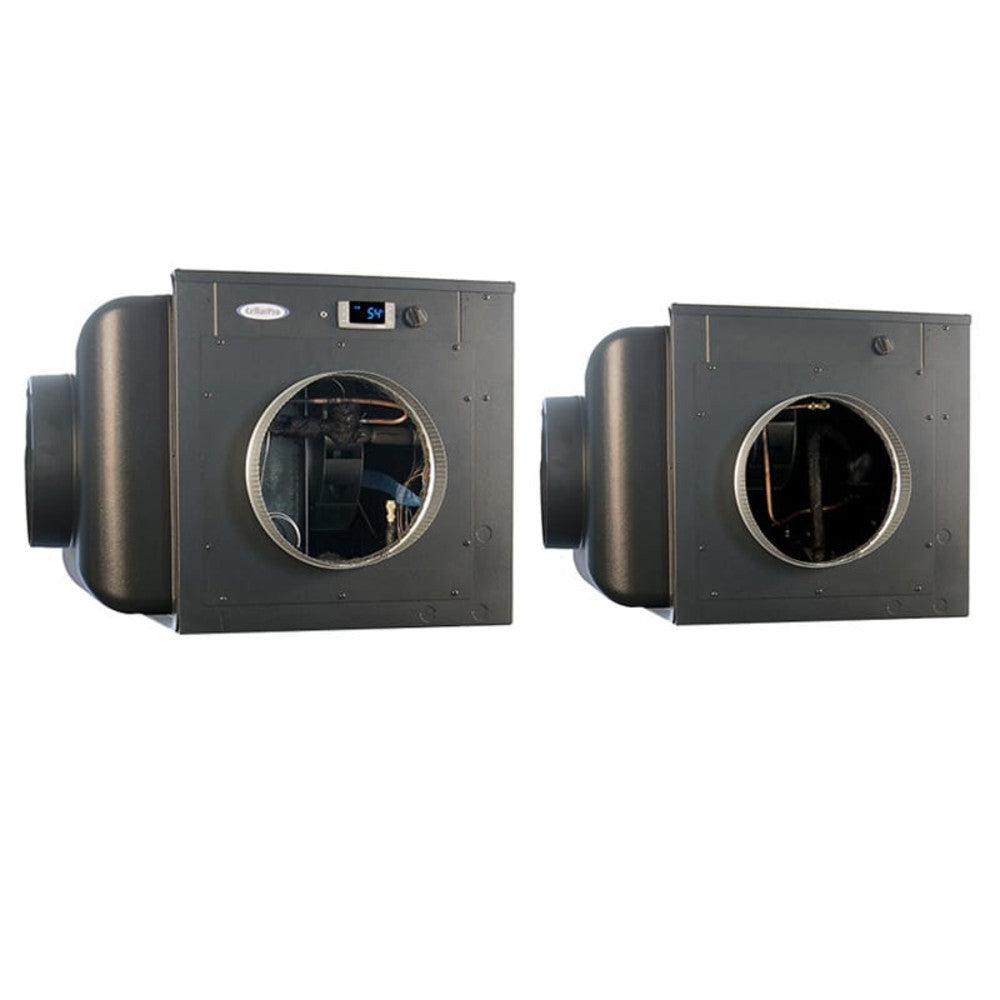

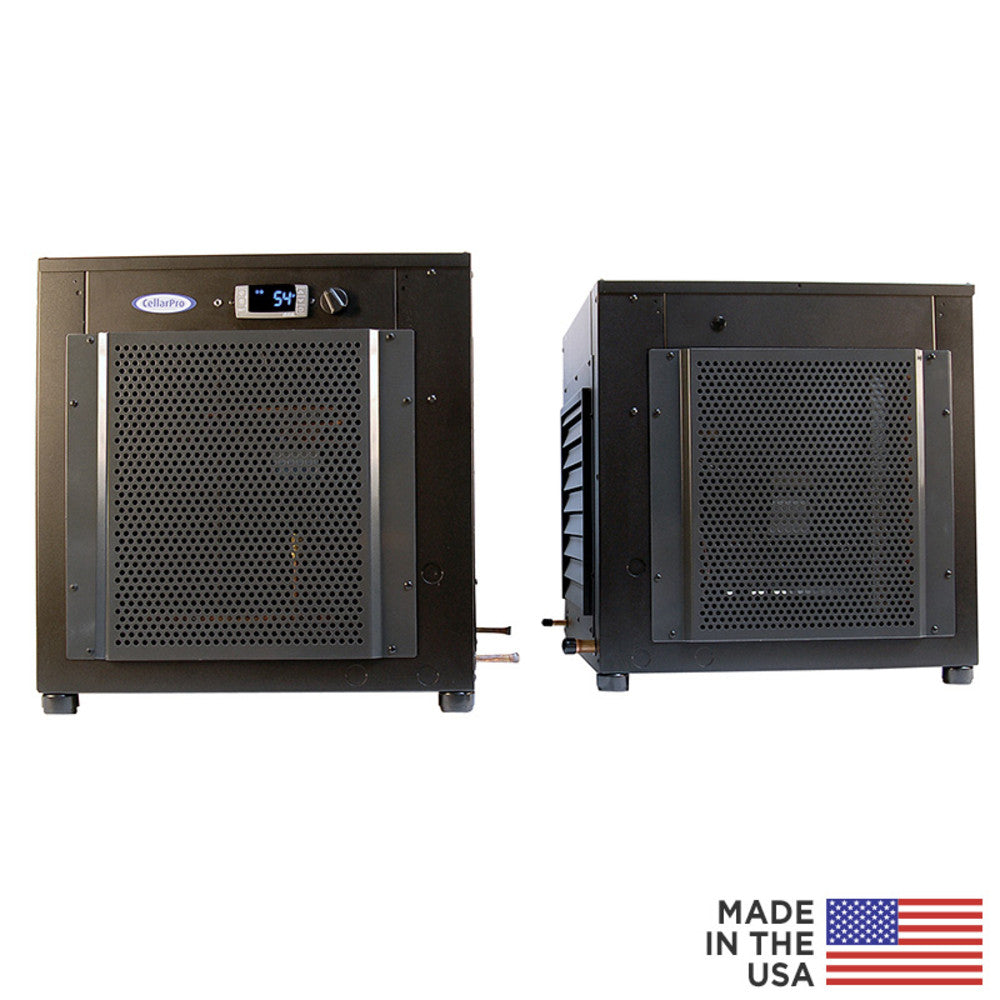

CellarPro Air Handler Split AH4500Sx-ECX Outdoor #36294

CellarPro Air Handler Split AH4500Sx-ECX Outdoor #36294

Brand: CellarPro

Size: 18 3/5w x 18 3/5d x 19 3/10h (in) (Evap)

Weight: 225 lbs

Evaporator Dimensions:
- 60 lbs (no humidifier)
- 18.6w x 18.6d x 19.3h

Condensing Unit Dimensions:
- 111 lbs
- 18.6w x 18.6d x 19.3h

Power:
- CellarPro Air Handler Split systems offer a choice of 110V / 60Hz wiring and power configurations:
  1. Two permanent power connections for the evaporator (2.0 amps / 15 amp circuit breaker) and the condensing unit (10.7 amps / 15 amp circuit breaker). This wiring is recommended for Valve Control configurations.

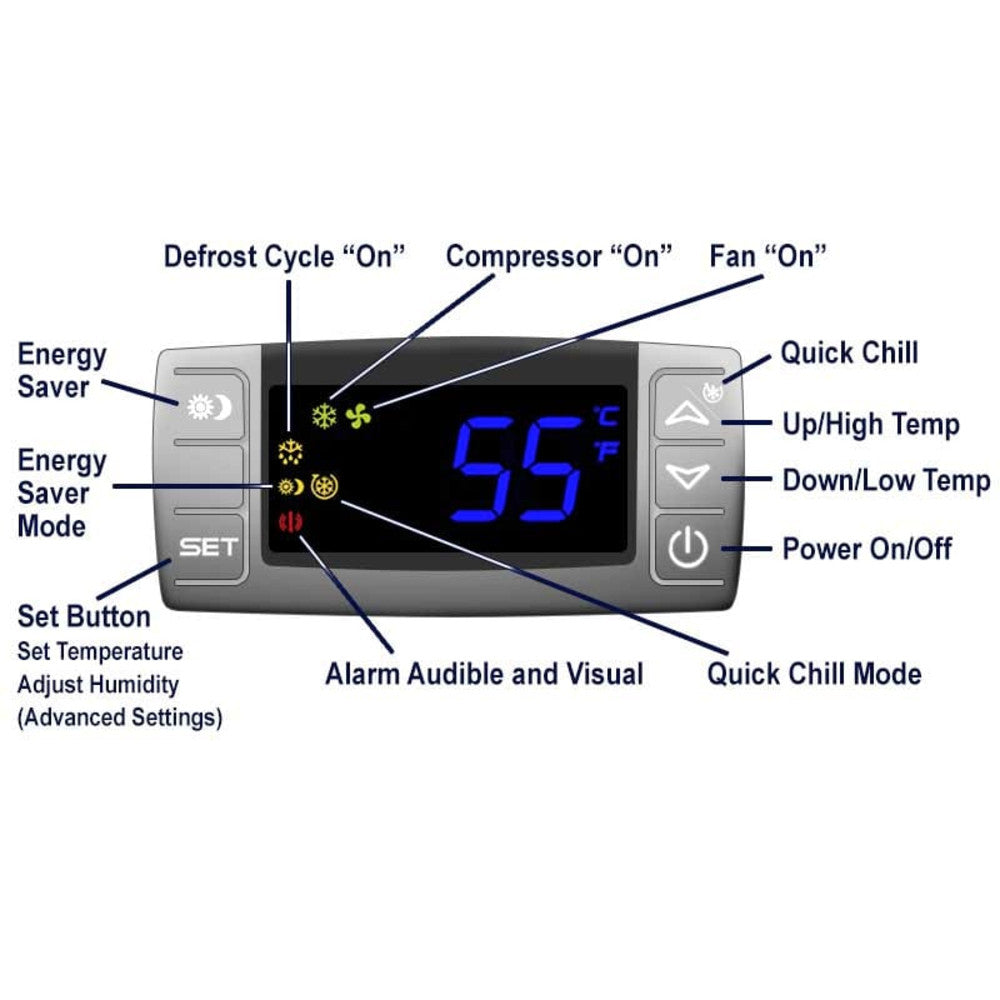

  2. One permanent power connection for the entire system (20 amp circuit breaker). In this configuration, the condensing unit must be wired to the evaporator, and must be used with Electronic Control.
- Startup Amps: 42.0 Amps
- Running Amps Cord-Connected: 10.6 Amps
- Total Watts: 636 (medium fan speed)
- 1/2 Ton Nominal

BTUH @ 55F
- Low Fan Speed: 3607
- Med Fan Speed: 3975
- High Fan Speed: 4328

Decibels
Evaporator Decibels
- Low Fan Speed, Ducted: 38 dbA
- Med Fan Speed, Ducted: 44 dbA
- High Fan Speed, Ducted: 52 dbA

Condensing Unit Decibels
- Low Fan Speed, Ducted / Non-Ducted: 43 dbA / 56 dbA
- Med Fan Speed, Ducted / Non-Ducted: 50 dbA / 63 dbA
- High Fan Speed, Ducted / Non-Ducted: 55 dbA / 68 dbA

Sizing Table: Click here to view sizing table
