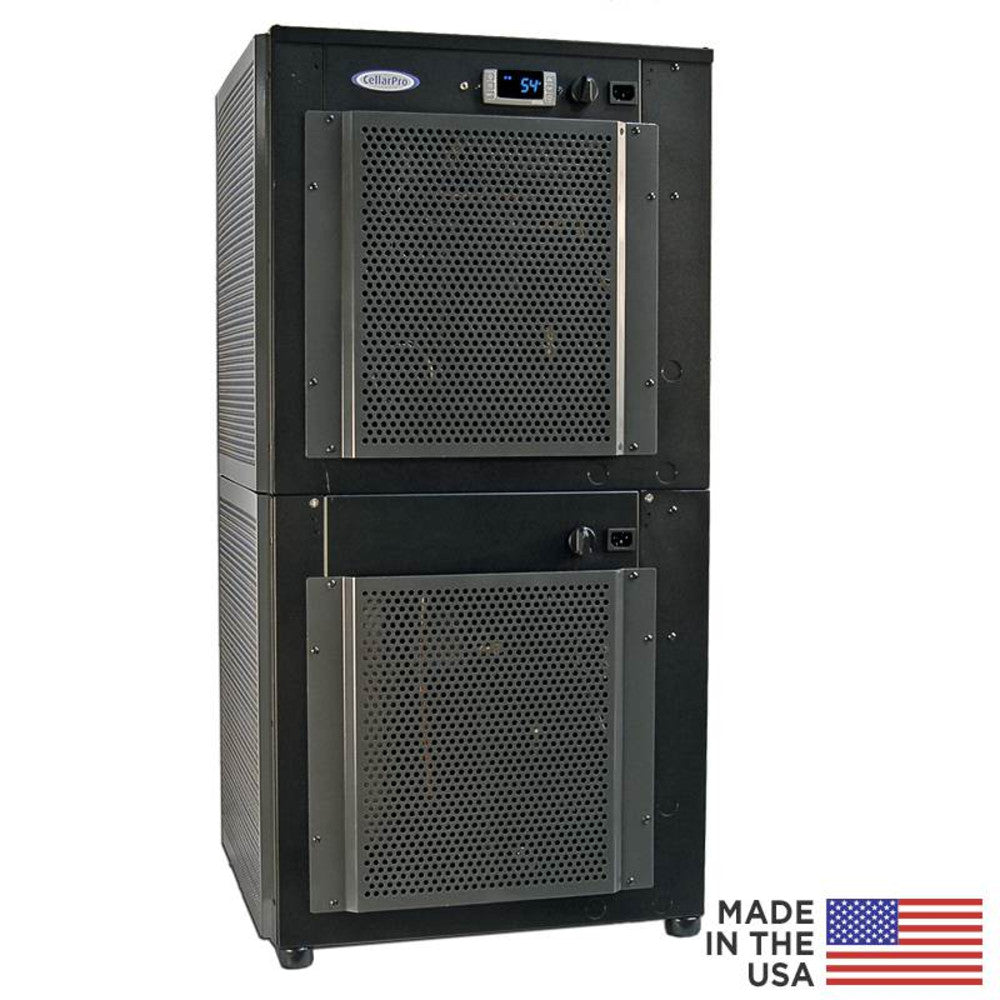

CellarPro Air Handler AH8500SCv-ECX Vertical #7109
CellarPro Air Handler AH8500SCv-ECX Vertical #7109
Brand: CellarPro

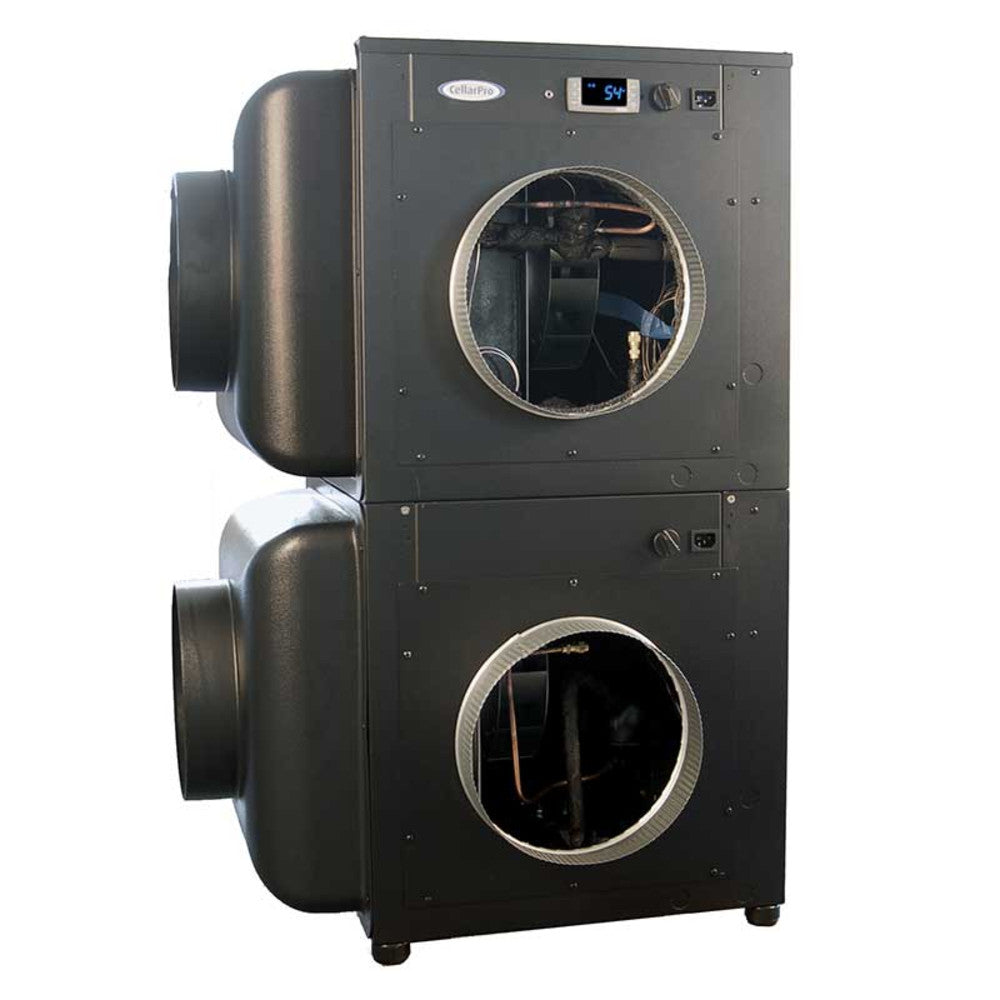

Size: 18 3/5w x 18 3/5d x 37 9/10h (in) 10-inch ducting
Weight: 220 lbs
Power/Rating:
- CellarPro Air Handlers use two 110V / 60Hz plug-in power cords, as follows:
- Running Amps Cord-Connected: 14.6 Amps
- Total Watts: 1078 (medium fan speed)
- 1 Ton Nominal
BTUH @ 55F
- Low Fan Speed: 6245
- Med Fan Speed: 6649
- High Fan Speed: 7156
Decibels
Evaporator Decibels
- Low Fan Speed, Ducted: 38 dbA
- Med Fan Speed, Ducted: 44 dbA
- High Fan Speed, Ducted: 52 dbA
Condenser Decibels
- Low Fan Speed, Ducted / Non-Ducted: 45 dbA / 58 dbA
- Med Fan Speed, Ducted / Non-Ducted: 52 dbA / 65 dbA
- High Fan Speed, Ducted / Non-Ducted: 57 dbA / 70 dbA
Sizing Table: Click here to view sizing table
Size: 18 3/5w x 18 3/5d x 37 9/10h (in) 10-inch ducting
Weight: 220 lbs
Power/Rating:
- CellarPro Air Handlers use two 110V / 60Hz plug-in power cords, as follows:
- One cord for the compressor, which pulls 11.4 amps and requires a dedicated 20 amp circuit breaker
- One cord for the rest of the components, which pull 3.2 amps and require a dedicated 15 amp circuit breaker
- Running Amps Cord-Connected: 14.6 Amps
- Total Watts: 1078 (medium fan speed)
- 1 Ton Nominal
BTUH @ 55F
- Low Fan Speed: 6245
- Med Fan Speed: 6649
- High Fan Speed: 7156
Decibels
Evaporator Decibels
- Low Fan Speed, Ducted: 38 dbA
- Med Fan Speed, Ducted: 44 dbA
- High Fan Speed, Ducted: 52 dbA
Condenser Decibels
- Low Fan Speed, Ducted / Non-Ducted: 45 dbA / 58 dbA
- Med Fan Speed, Ducted / Non-Ducted: 52 dbA / 65 dbA
- High Fan Speed, Ducted / Non-Ducted: 57 dbA / 70 dbA
Sizing Table: Click here to view sizing table
