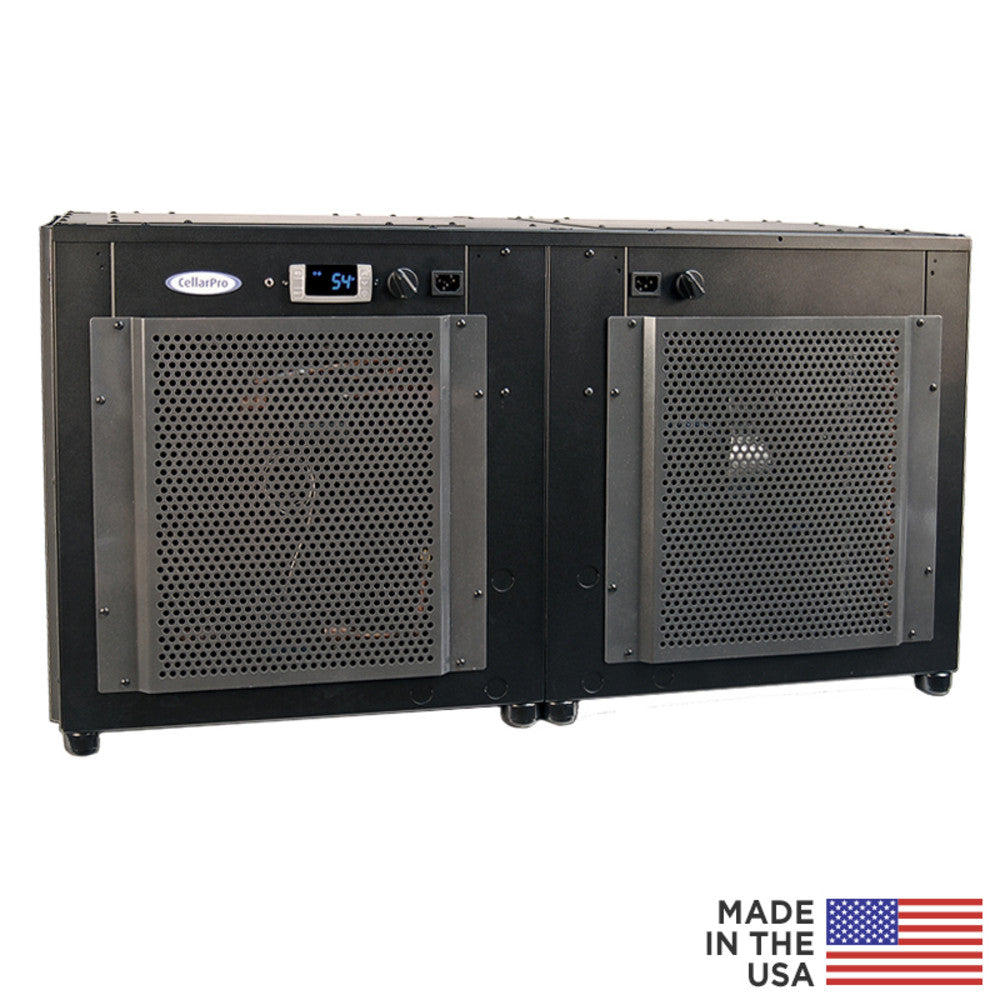

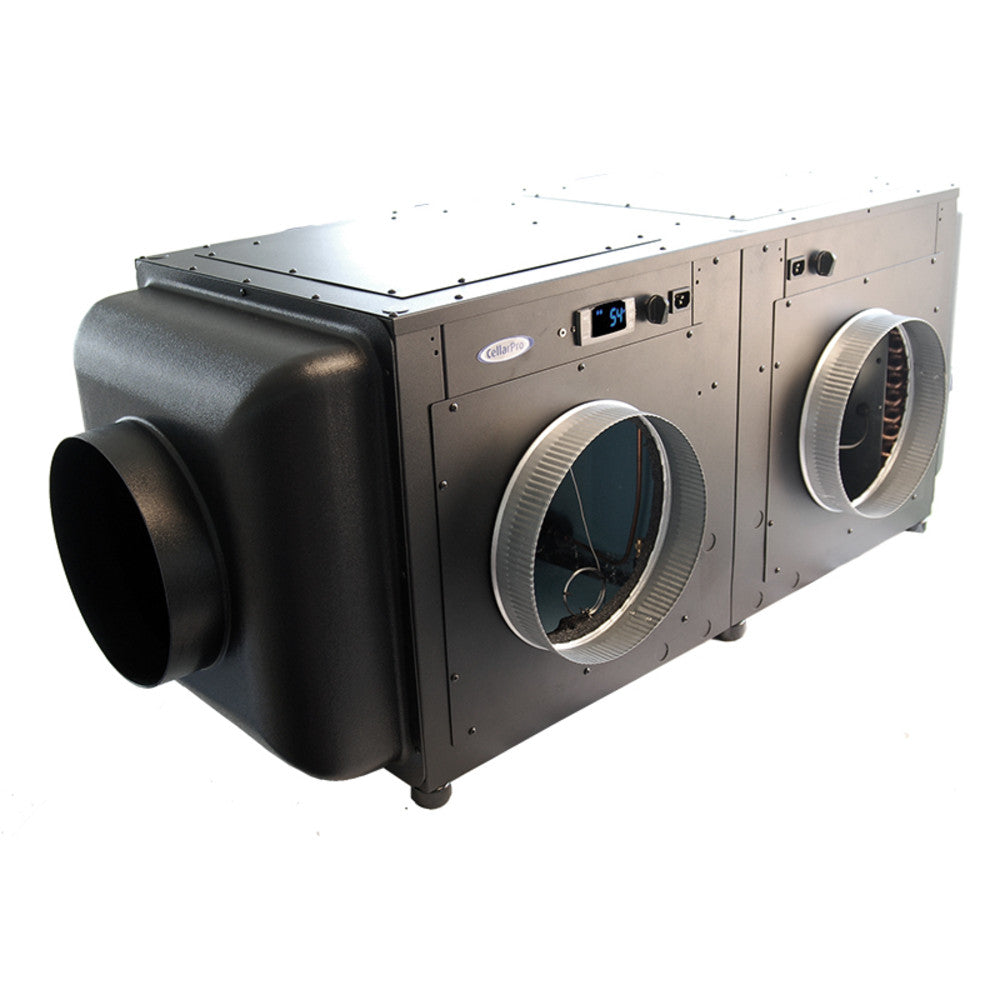

CellarPro Air Handler AH8500SCh-ECC Horizontal #36021
CellarPro Air Handler AH8500SCh-ECC Horizontal #36021
Brand: CellarPro
Size: 37 1/5w x 18 3/5d x 19 3/10h (in) 10-inch ducting
Weight: 236 lbs
Dimensions:
- 170 lbs (no humidifier)
- 37.2w x 18.6d x 19.3h
Power/Rating:
- CellarPro Air Handlers use two 110V / 60Hz plug-in power cords, as follows:
- Running Amps Cord-Connected: 15.7 Amps
- Total Watts: 1268 (medium fan speed)
- 1 Ton Nominal
BTUH @ 55F
- Low Fan Speed: 6245
- Med Fan Speed: 6649
- High Fan Speed: 7156
Decibels
Evaporator Decibels
- Low Fan Speed, Ducted: 47 dBA
- Med Fan Speed, Ducted: 51 dBA
- High Fan Speed, Ducted: 59 dBA
Condenser Decibels
- Low Fan Speed, Ducted / Non-Ducted: 45 dBA / 58 dBA
- Med Fan Speed, Ducted / Non-Ducted: 52 dBA / 65 dBA
- High Fan Speed, Ducted / Non-Ducted: 57 dBA / 70 dBA
Sizing Table: Click here to view sizing table
Size: 37 1/5w x 18 3/5d x 19 3/10h (in) 10-inch ducting
Weight: 236 lbs
Dimensions:
- 170 lbs (no humidifier)
- 37.2w x 18.6d x 19.3h
Power/Rating:
- CellarPro Air Handlers use two 110V / 60Hz plug-in power cords, as follows:
- One cord for the compressor, which pulls 11.4 amps and requires a dedicated 20 amp circuit breaker
- One cord for the rest of the components, which pull 4.4 amps and require a dedicated 15 amp circuit breaker
- Running Amps Cord-Connected: 15.7 Amps
- Total Watts: 1268 (medium fan speed)
- 1 Ton Nominal
BTUH @ 55F
- Low Fan Speed: 6245
- Med Fan Speed: 6649
- High Fan Speed: 7156
Decibels
Evaporator Decibels
- Low Fan Speed, Ducted: 47 dBA
- Med Fan Speed, Ducted: 51 dBA
- High Fan Speed, Ducted: 59 dBA
Condenser Decibels
- Low Fan Speed, Ducted / Non-Ducted: 45 dBA / 58 dBA
- Med Fan Speed, Ducted / Non-Ducted: 52 dBA / 65 dBA
- High Fan Speed, Ducted / Non-Ducted: 57 dBA / 70 dBA
Sizing Table: Click here to view sizing table
