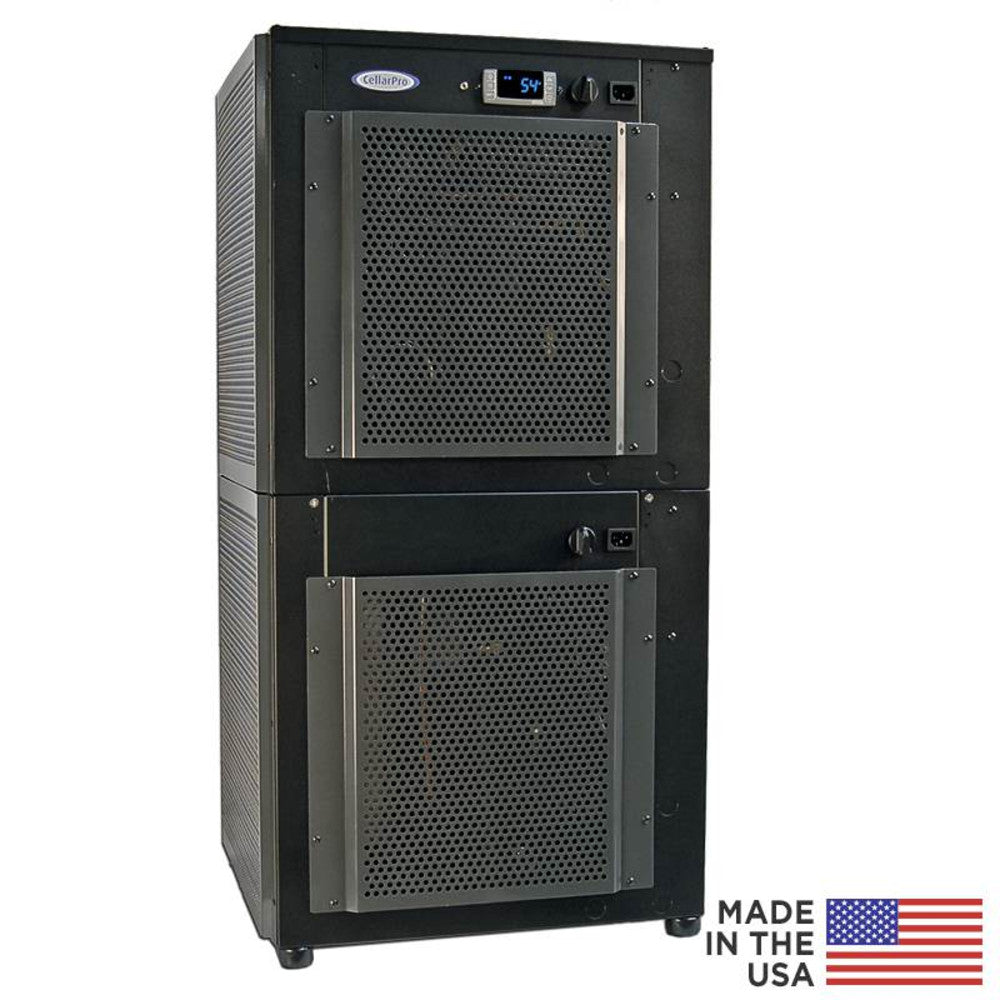

CellarPro Air Handler AH6500SCv-ECC Vertical #36019
CellarPro Air Handler AH6500SCv-ECC Vertical #36019
Brand: CellarPro

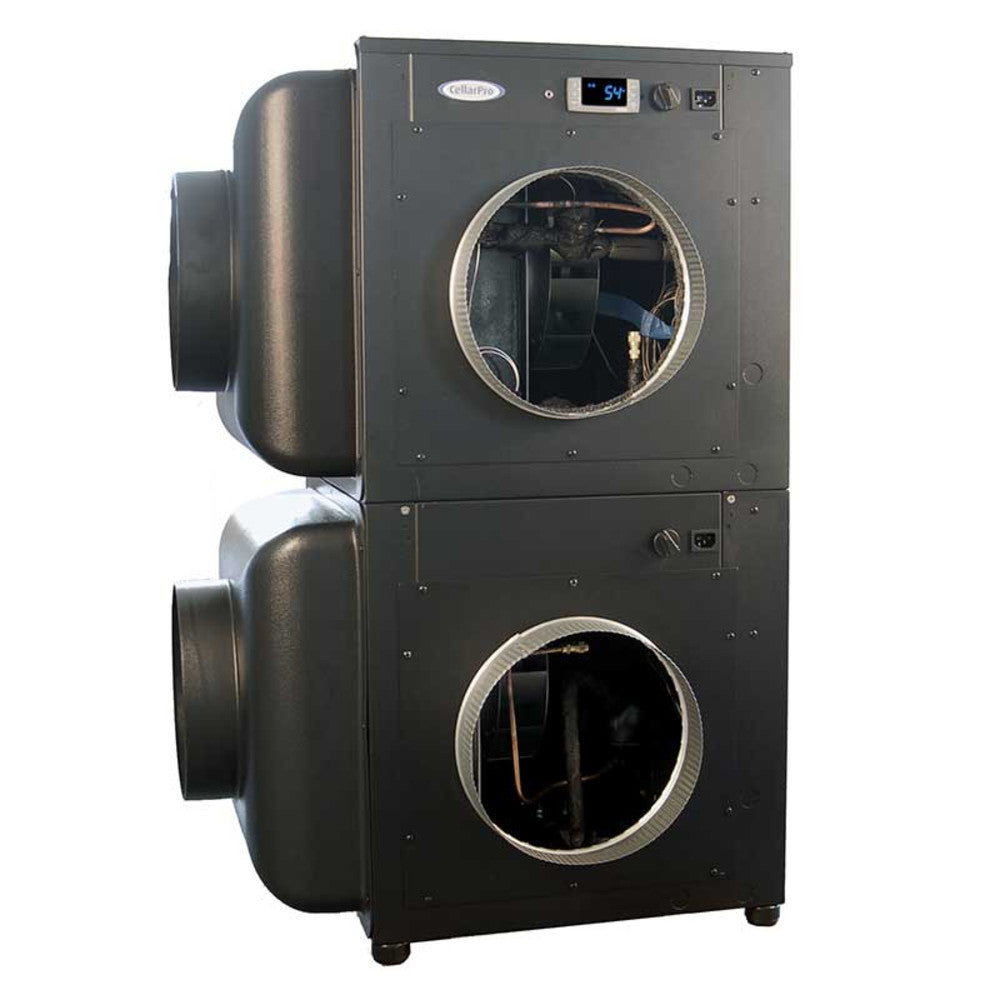

Size: 18 3/5w x 18 3/5d x 37 9/10h (in) 10-inch ducting
Weight: 212 lbs
Power/Rating:
- CellarPro Air Handlers use two 110V / 60Hz plug-in power cords, as follows:
- Running Amps Cord-Connected: 15.9 Amps
- Total Watts: 1134 (medium fan speed)
- 3/4 Ton Nominal
BTUH @ 55F
- Low Fan Speed: 4923
- Med Fan Speed: 5350
- High Fan Speed: 5771
Decibels
Evaporator Decibels
- Low Fan Speed, Ducted: 47 dBA
- Med Fan Speed, Ducted: 51 dBA
- High Fan Speed, Ducted: 52 dBA
Condenser Decibels
- Low Fan Speed, Ducted / Non-Ducted: 43 dBA / 56 dBA
- Med Fan Speed, Ducted / Non-Ducted: 50 dBA / 63 dBA
- High Fan Speed, Ducted / Non-Ducted: 55 dBA / 68 dBA
Sizing Table: Click here to view sizing table
Size: 18 3/5w x 18 3/5d x 37 9/10h (in) 10-inch ducting
Weight: 212 lbs
Power/Rating:
- CellarPro Air Handlers use two 110V / 60Hz plug-in power cords, as follows:
- One cord for the compressor, which pulls 11.5 amps and requires a dedicated 20 amp circuit breaker
- One cord for the rest of the components, which pull 4.4 amps and require a dedicated 15 amp circuit breaker
- Running Amps Cord-Connected: 15.9 Amps
- Total Watts: 1134 (medium fan speed)
- 3/4 Ton Nominal
BTUH @ 55F
- Low Fan Speed: 4923
- Med Fan Speed: 5350
- High Fan Speed: 5771
Decibels
Evaporator Decibels
- Low Fan Speed, Ducted: 47 dBA
- Med Fan Speed, Ducted: 51 dBA
- High Fan Speed, Ducted: 52 dBA
Condenser Decibels
- Low Fan Speed, Ducted / Non-Ducted: 43 dBA / 56 dBA
- Med Fan Speed, Ducted / Non-Ducted: 50 dBA / 63 dBA
- High Fan Speed, Ducted / Non-Ducted: 55 dBA / 68 dBA
Sizing Table: Click here to view sizing table
