Root Stock Wine Design

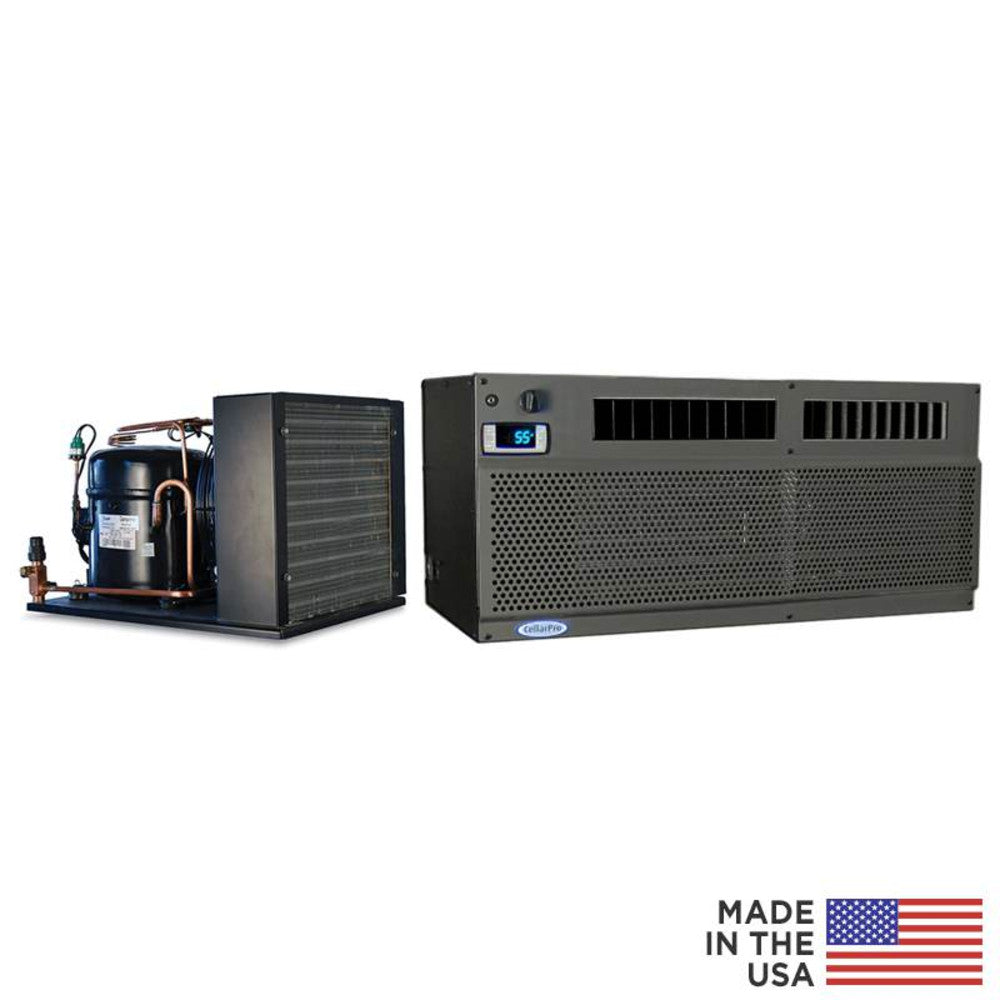

CellarPro 6000S Split System 220V 50/60Hz #7345
CellarPro 6000S Split System 220V 50/60Hz #7345
Brand: CellarPro
UPC: 077757073458
Size: 77 1/5w x 36 3/5d x 33 1/2h (cm)
Weight: 39 lbs
Power/Rating:
220V AC 50/60 Hz

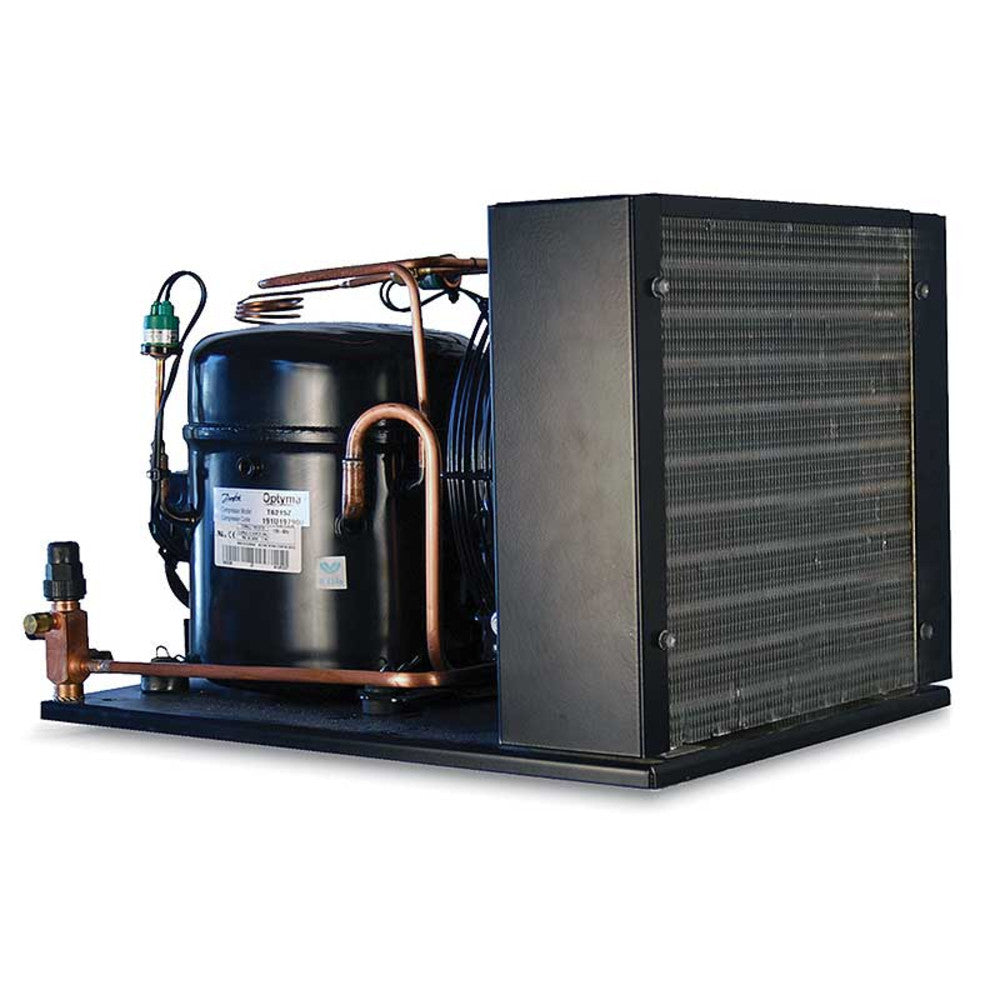

Condensing Unit Dimensions:
- 20.4 kg
- 35.3w x 48d x 30.2h (cm)

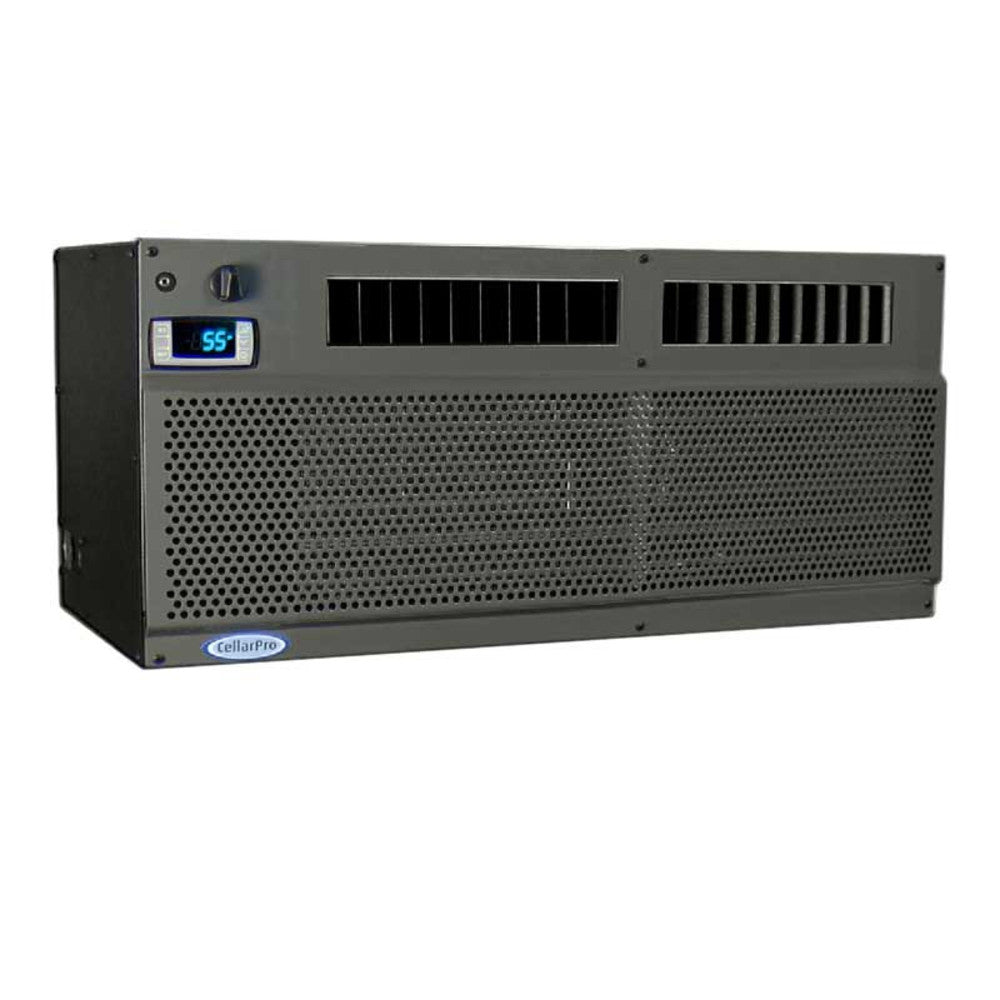

Evaporator Unit Dimensions:
- 18.1 kg
- 77.2w x 36.6d x 33.5h (cm)
System Amps:
- Common dedicated 20-amp circuit (valve control) or 25-amp circuit (electronic control) is required to power the unit.
- Startup: 18.6 Amps
- Unit Amp Rating: 8.5 Amps (high fan speed)
BTUH @ 13C / 60Hz / Evaporator Decibels
- Low Fan Speed: 4311 / 56 dbA
- Med Fan Speed: 4880 / 61 dbA
- High Fan Speed: 5046 / 69 dbA
BTUH @ 13C / 50Hz / Evaporator Decibels
- Low Fan Speed: 3751 / 56 dbA
- Med Fan Speed: 4246 / 61 dbA
- High Fan Speed: 4390 / 69 dbA
- 1/4 Ton Nominal
Condensing Unit Decibels
- Indoor: 65
- Outdoor: 63
Capacity: 4390 BTUH @ 50Hz / 13C
Sizing Table: Click here to view sizing table
