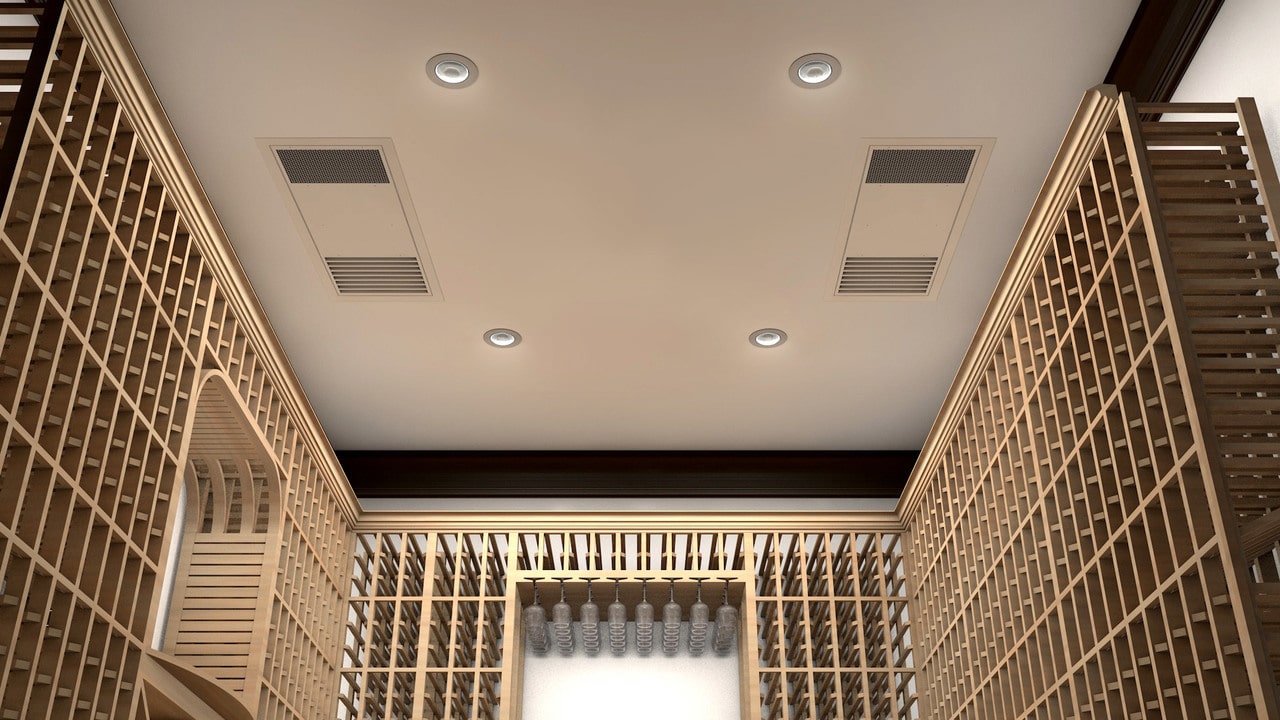

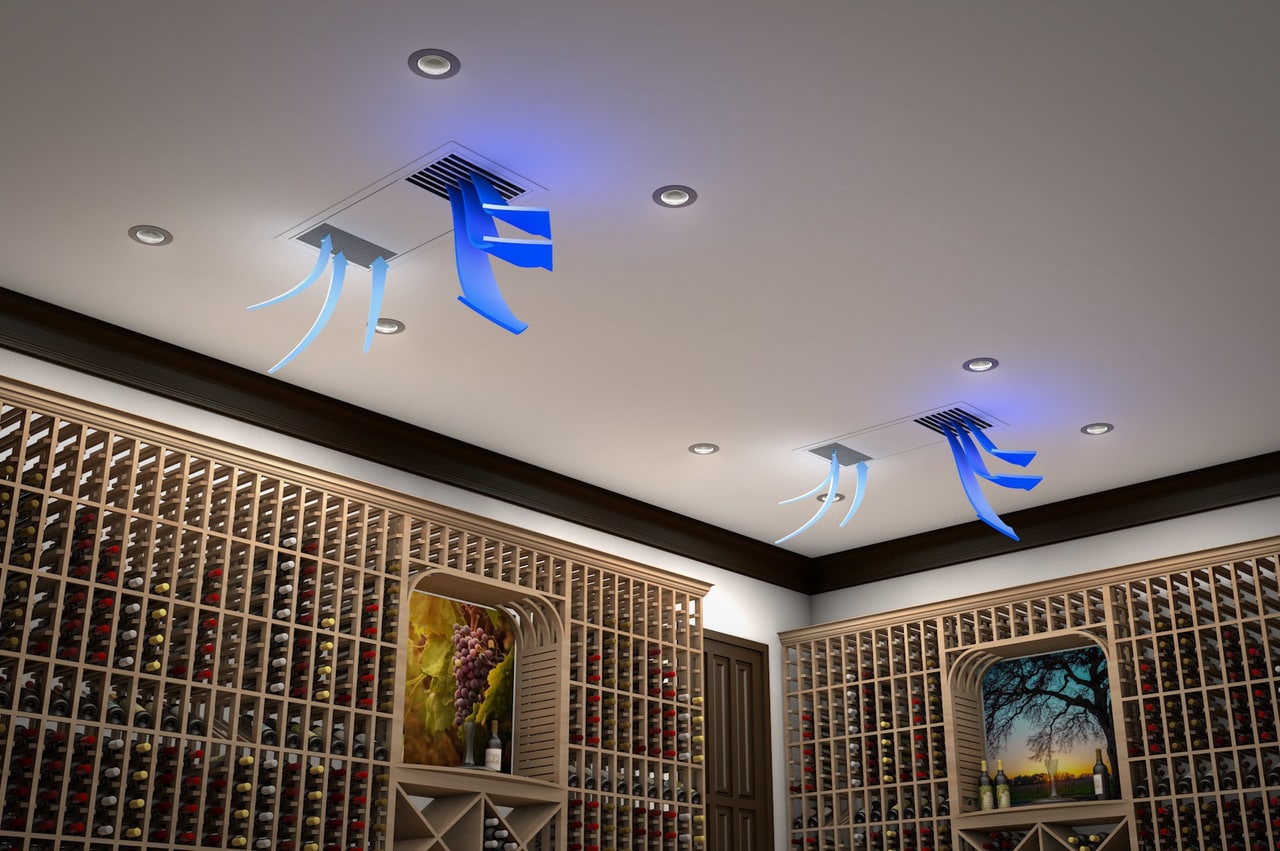

Ceiling Mount Twin Split 12000 Ductless (220V Condenser)

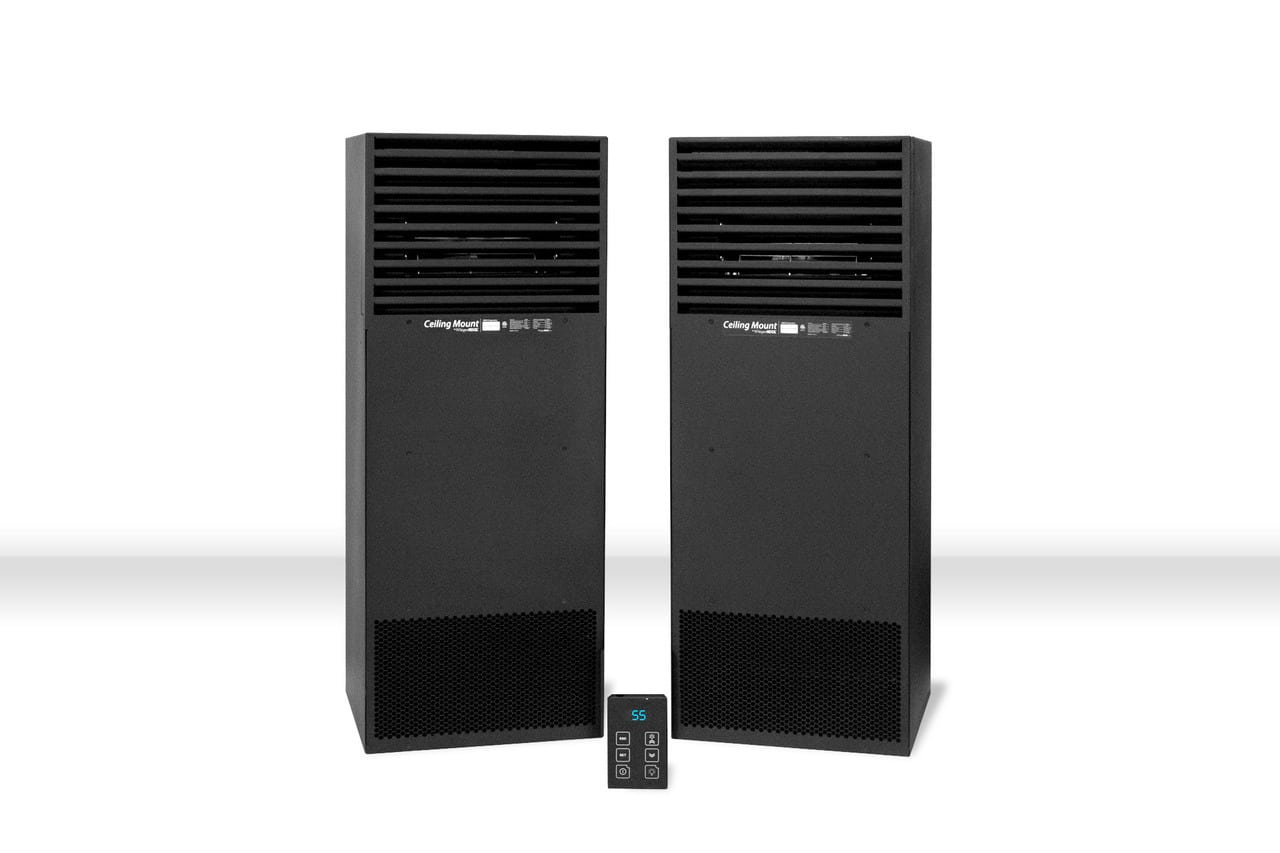

EVAPORATOR
Model Twin 12000
Cellar Size  3500 cu. ft *
Fan  Medium | High
BTU/h (60°F condenser air intake temperature) Sensible / Total  8951 / 9948 | 9292 / 10604
BTU/h (75°F condenser air intake temperature) Sensible / Total 8796 / 9707 | 8952 / 9992
BTU/h (85°F condenser air intake temperature) Sensible / Total  8561 / | 9079 8631 / 9183
dBA 48 | 53
Dimensions 35.75”L x 14.5”W x 12.75”H
Refrigerant R-134a
Voltage Rating 120V (15-amp dedicated circuit required)
Weight (lbs) 66
Amps Primary 1.74 (Running Amps);Secondary 1.04 (Running Amps)
Drain Line 1/4″ ID clear plastic tubing (not provided) – Rigid tube recommended
Installation Evaporator unit is installed in the cellar. Condensing unit can be installed up to 100 line feet from the evaporator unit.
Thermostat Advanced digital display (50-ft. cable), liquid-temperature-measuring bottle probe (50-ft. cable), 24V – customer supplied
Temp. Delta Can maintain a 55°F cellar temperature with up to 120°F condenser air intake temperature
Warranty Two-year limited warranty (parts and labor)

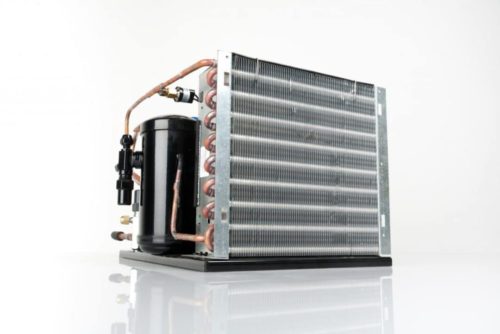

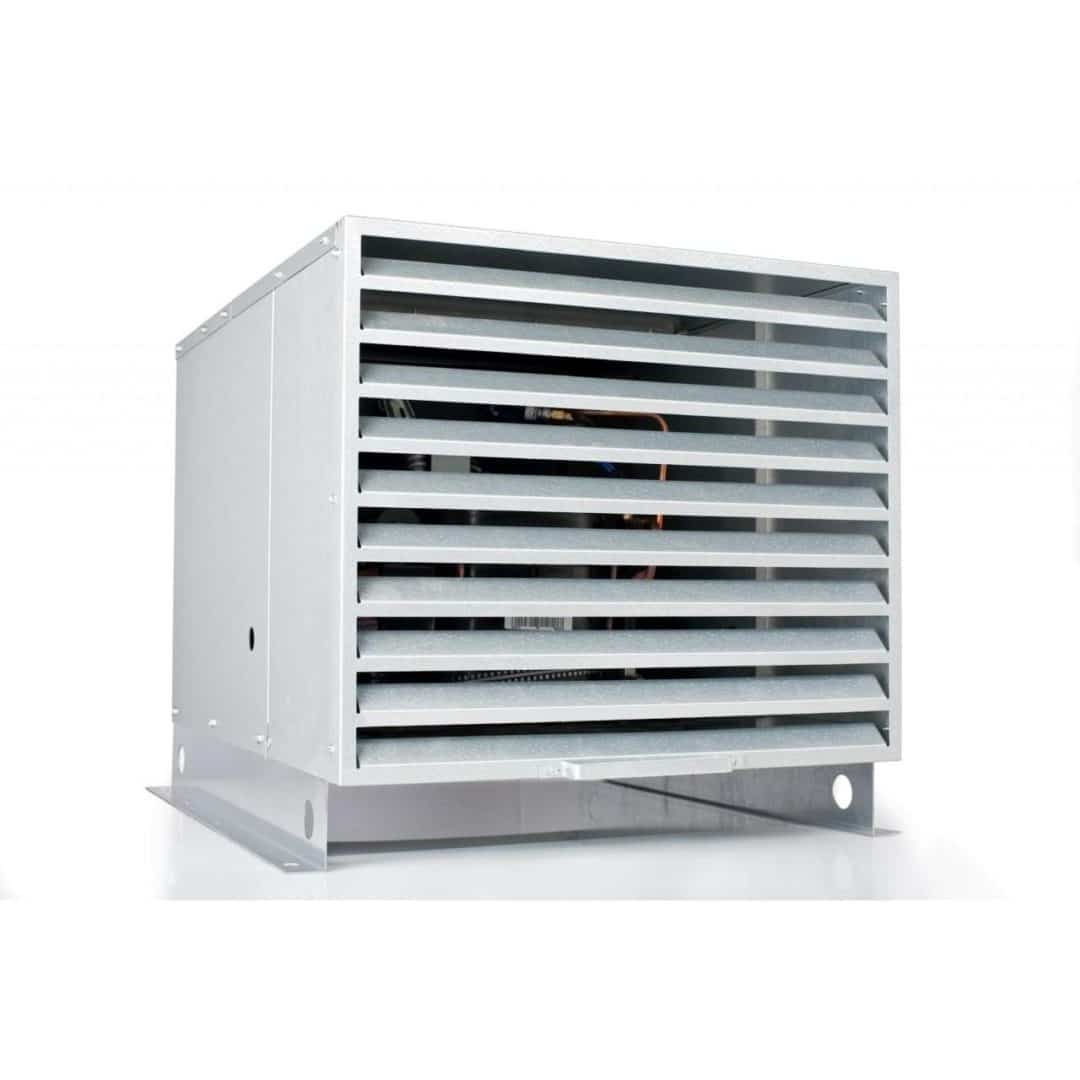

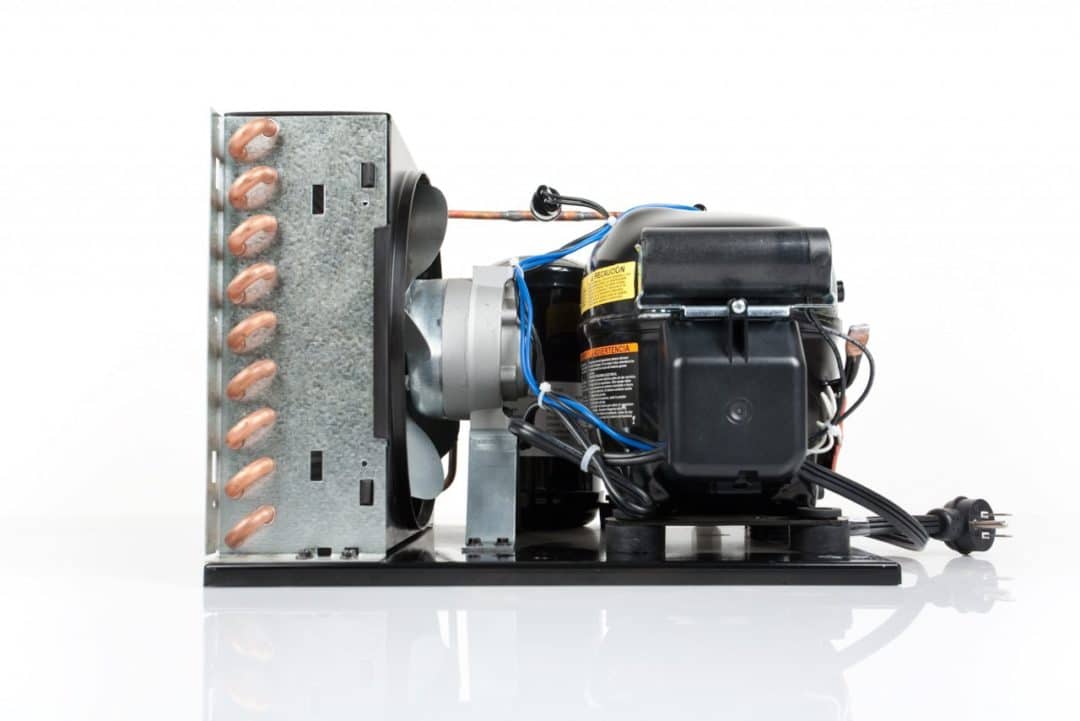

CONDENSER
Model 12000
dBA 52
Dimensions  31.18″L x 10.75″W x 23.25″H
Condensing Unit HP 1.5HP
Voltage Rating 220V (15-amp dedicated circuit required)
Weight (lbs) 84
Amps LRA 23.6, RLA 5.76, FLA 6.6
Line Set Liquid Line 3/8″ OD; Suction Line 5/8″ OD (less than 50 ft.), 3/4″ (greater than 50 ft.)
Installation Evaporator unit is installed in the cellar. The condensing unit is installed up to 100 line feet from the evaporator unit.
Temp. Delta Can maintain a 55°F cellar temperature with up to 120°F condenser air intake temperature.
Warranty Two-year limited warranty (parts and labor)
